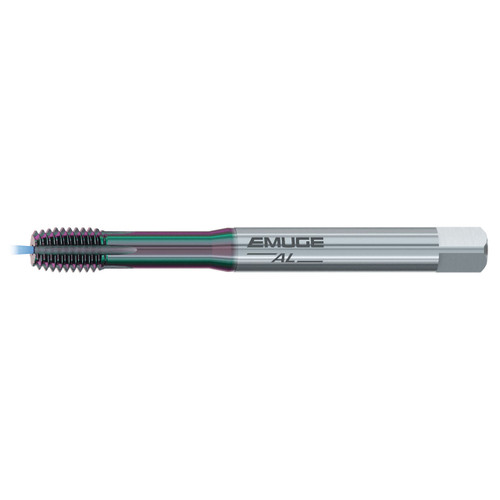

Emuge B5311Q00.0060 | M 6 Thread Size x 10.00mm Thread Length x 4.90mm Tap Square GLT-104 Coated Thread Forming Tap

Emuge B5311Q00.0060 | M 6 Thread Size x 10.00mm Thread Length x 4.90mm Tap Square GLT-104 Coated Thread Forming Tap

SKU: 18020063 Weight: 0.03 LBS Minimum Purchase: 1 unit
UPC:
$173.96 $170.48
(You save $3.48)
Shipping: Calculated at Checkout

About This Item

Features:

  • The InnoForm AL/E roll form bottoming tap is designed for aluminum alloys.
  • Axial coolant fed to maximize chip evacuation and improve thread quality
  • GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
  • DIN/DIN standard dimensions for overall length and shank size

Product Specifications
Manufacturer Part NumberB5311Q00.0060
Thread SizeM 6x1
Thread Diameter SizeM 6
Tap Square (mm)4.90mm
Thread Length (mm)10.00mm
Overall Length (mm)80.00mm
Length GroupDIN Length
Dimensional StandardDIN/DIN
Shank Toleranceh9
Flute DirectionStraight
Thread StandardM
Thread Tolerance Class6HX
Tap Chamfer1.5 -2 P
Tap Chamfer FormE
Coolant Supply PropertyInternal
Coolant FedAxial
Cutting Edge MaterialHSSE-PM
CoatingGLT-104
Product TypeThread Forming Tap
