Features

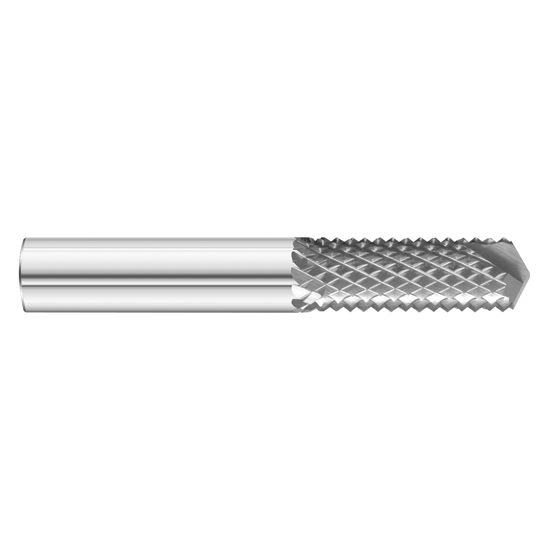

- The 2600 MATRX Burr Router produces clean shearing of material's fibers and allows for aggressive removal rates with minimal delamination
- The 2600 MATRX Burr Router is available with no end cut, burr style end cut, end mill end cut, and 135 Degree drill point and is stocked uncoated
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.1250" |
| Cutting Diameter (mm) | 3.18mm |
| Cutting Diameter (Inch) | 1/8" |
| Cutting Flute Length (Decimal Inch) | 0.5000" |
| Cutting Flute Length (mm) | 12.70mm |
| Cutting Flute Length (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (mm) | 3.18mm |
| Shank Diameter (Inch) | 1/8" |
| Overall Length (Decimal Inch) | 1.5000" |
| Overall Length (mm) | 38.10mm |
| Overall Length (Inch) | 1-1/2" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Number of Flutes | 7 |
| Helix Angle (Degrees) | 28 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Style D - 135 Degree Drill Point |
| End Type Character Designation | RD |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
End Type:
Drill Point
Cutting Diameter (Inch):
1/8"
Cutting Diameter (Decimal Inch):
0.1250"
Cutting Diameter (mm):
3.18mm
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.70mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Ships:
From Partner Facility
