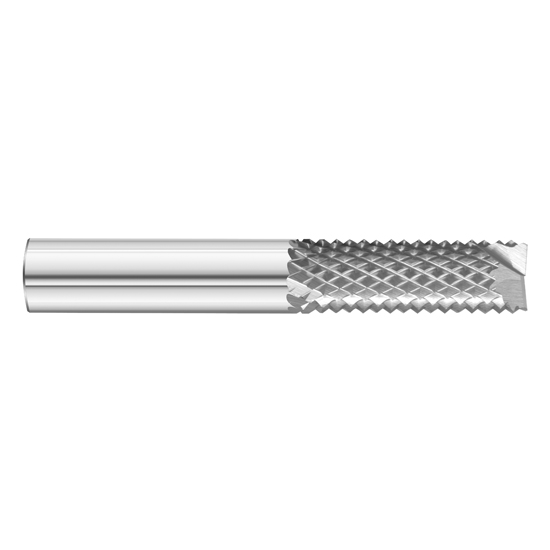

Fullerton Tool 26127 | 1/8" Diameter 1/2" Length of Cut End Mill End Diamond Pattern Router

$13.97 $8.80
(You save $5.17)
Ships:
From Partner Facility
Brand:
Fullerton Tool
End Type:
End Mill
Cutting Diameter (Inch):
1/8"
Cutting Diameter (Decimal Inch):
0.1250"
Cutting Diameter (mm):
3.18mm
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.70mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Ships:
From Partner Facility
IsDiscontinued:
SKU:
25004524
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Features

  • The 2600 MATRX Burr Router produces clean shearing of material's fibers and allows for aggressive removal rates with minimal delamination
  • The 2600 MATRX Burr Router is available with no end cut, burr style end cut, end mill end cut, and 135 Degree drill point and is stocked uncoated

Product Specifications
Cutting Diameter (Decimal Inch) 0.1250"
Cutting Diameter (mm) 3.18mm
Cutting Diameter (Inch) 1/8"
Cutting Flute Length (Decimal Inch) 0.5000"
Cutting Flute Length (mm) 12.70mm
Cutting Flute Length (Inch) 1/2"
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (mm) 3.18mm
Shank Diameter (Inch) 1/8"
Overall Length (Decimal Inch) 1.5000"
Overall Length (mm) 38.10mm
Overall Length (Inch) 1-1/2"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 7
Helix Angle (Degrees) 28
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Style C - End Mill Type End Cu
End Type Character Designation RC
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
