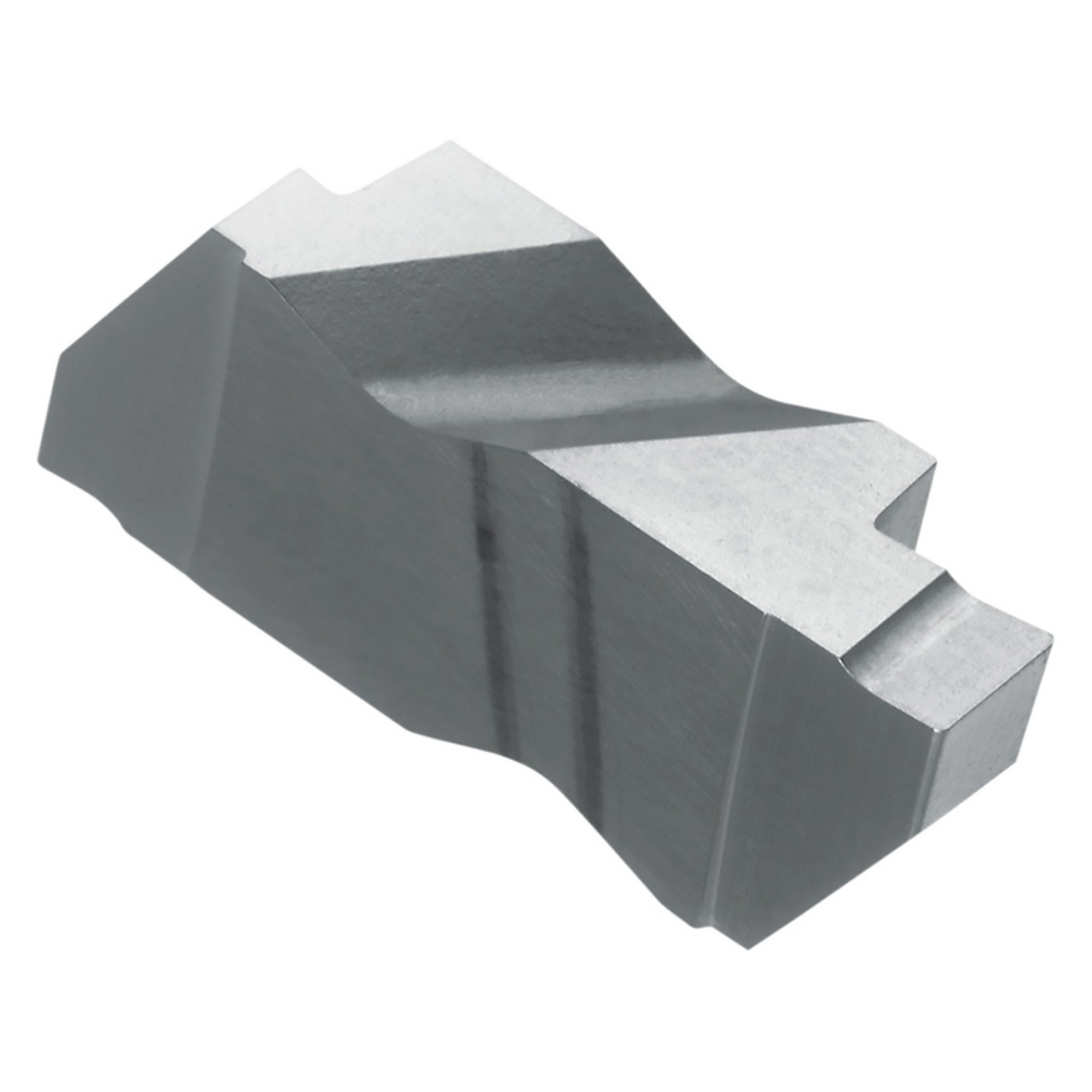

Kyocera Precision Tools 8867418 | KCGP4250L TN60 0.2500" Cutting width x 1.2717" Insert Length Uncoated Cermet Grooving Insert

$23.17
Brand:
Kyocera Precision Tools
Insert Style:
KCGP
Insert Size:
4250
Material:
Cermet;Cutting Width (Decimal Inch)=0.2500"""
Cutting Width (mm):
6.35mm
Maximum Depth of Cut (Decimal Inch):
0.2500"
Maximum Depth of Cut (mm):
6.35mm
Manufacturer's Grade:
TN60
Finish/Coating:
Uncoated
SKU:
23222281
Weight:
0.25 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

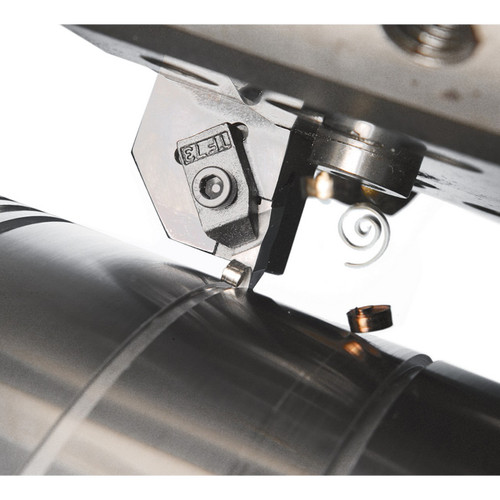

  • Insert for external grooving, internal large diameter shallow grooving
  • 2 Cutting edges
  • General purpose cermet with superior wear resistance and toughness
  • Application: Cutting of steel and stainless steel

Product Specifications
Tool Number8867418
Max Depth of Cut (Decimal Inch)0.2500"
Max Depth of Cut (mm)6.35mm
Cutting Width (Decimal Inch)0.2500"
Cutting Width (mm)6.35mm
Cutting Width Minimum (Decimal Inch)0.2500"
Cutting Width Minimum (mm)6.35mm
Cutting Width Maximum (Decimal Inch)0.2500"
Cutting Width Maximum (mm)6.35mm
Insert Length (Decimal Inch)1.2717"
Insert Length (mm)32.30mm
Corner Radius (Inch)0.018"
Corner Radius (mm)0.45mm
Thickness (Inch)0.453"
Thickness (mm)11.50mm
ApplicationExternal Grooving | Internal Large Diameter Shallow Grooving
Coating ProcessUncoated
Cutting RangeFinishing
HandLeft Hand
Insert Holding MethodClamp
Insert GradeTN60
Insert Size4250
MaterialCermet
Number of Cutting Edges2
Primary Workpiece MaterialSteel (P)
Usage ClassificationContinuous
