Features:

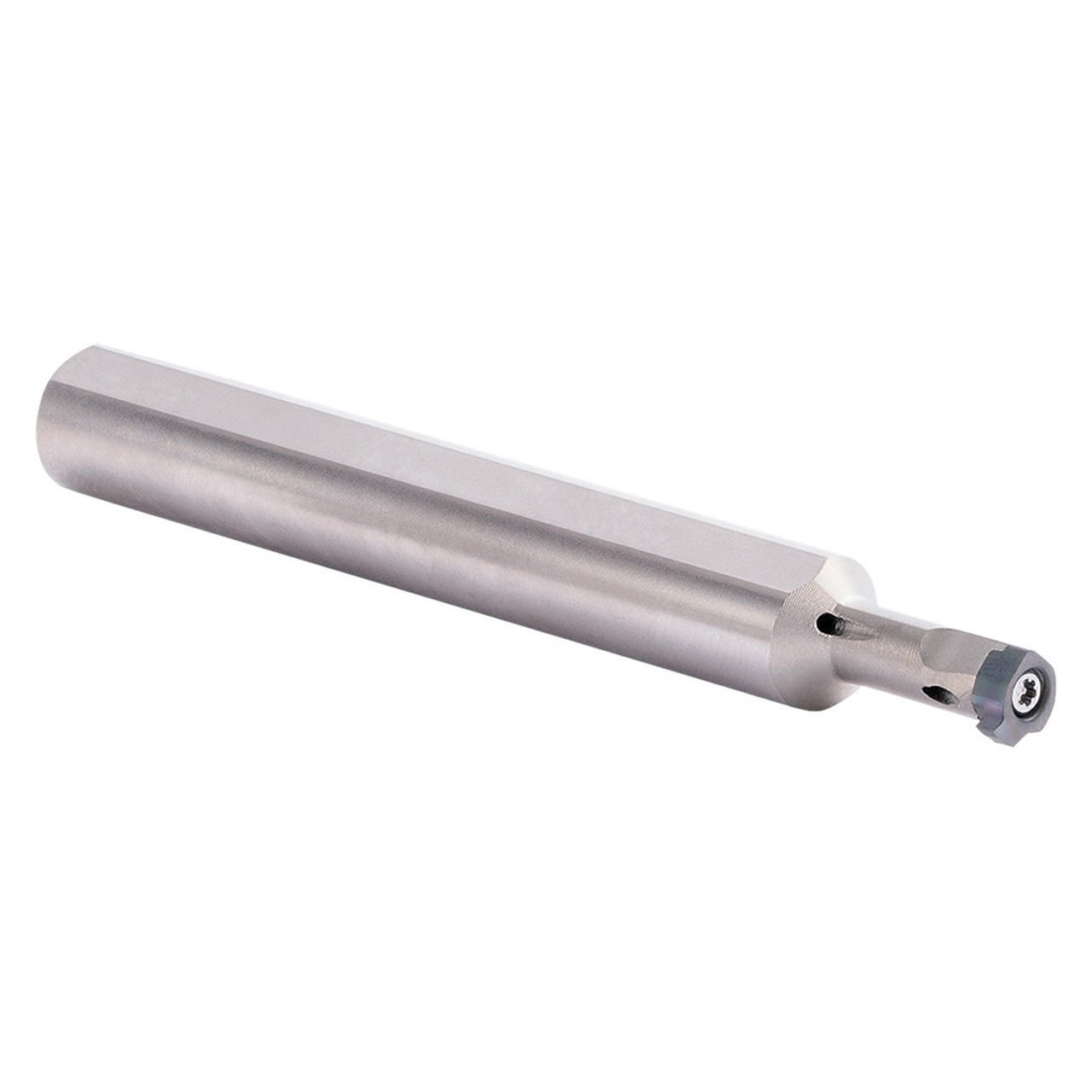

- Left-Hand toolholder for high-precision small internal grooving
- High strength clamping action by pulling the bottom surface of the insert in axial direction
- Stable machining is achieved by ensuring a firm clamp on the insert
- Excellent chip evacuation with double coolant holes and optimized flute shape
- Provides better solutions for chip evacuation in small internal grooving applications
Product Specifications
| EDP Number | THC14902 |
| Shank Width (Decimal Inch) | 0.9843" |
| Max Depth of Cut (Decimal Inch) | 0.0866" |
| Max Depth of Cut (mm) | 2.20mm |
| Cutting Width (Decimal Inch) | 0.0394 - 0.1181" |
| Cutting Width (mm) | 1.00 - 3.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.0394" |
| Cutting Width Minimum (mm) | 1.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1181" |
| Cutting Width Maximum (mm) | 3.00mm |
| Connection Diameter (Decimal Inch) | 0.6299" |
| Connection Diameter (mm) | 16.00mm |
| Minimum Bore Diameter (Decimal Inch) | 0.3937" |
| Minimum Bore Diameter (mm) | 10.00mm |
| Shank Height (Decimal Inch) | 0.5906" |
| Shank Height (mm) | 15.00mm |
| Tool Entering Angle ( Degree) | 5 Degree |
| Application | Internal Grooving | Small Parts Machining |
| Coolant Through (Yes/No) | Yes |
| Grooving Type | Internal Grooving |
| Hand | Left Hand |
| Insert Holding Method | Screw |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Type:
Internal Grooving
Hand of Holder:
Left-Hand
Maximum Depth of Cut (Decimal Inch):
0.0866"
Maximum Depth of Cut (mm):
2.20mm
Minimum Groove Width (Decimal Inch):
0.0394"
Minimum Groove Width (mm):
1.00mm
Maximum Groove Width (Decimal Inch):
0.1181"
Maximum Groove Width (mm):
3.00mm
Toolholder Style:
SIGC
Shank Height (Decimal Inch):
0.5906"
Shank Height (mm):
15.00mm
Shank Width/Diameter (Decimal Inch):
0.6299"
Shank Width/Diameter (mm):
16.00mm
Series:
SIGC;Through Coolant=Yes"
