Features:
| EDP Number | THC14904 |
| Shank Width (Decimal Inch) | 0.7874" |
| Max Depth of Cut (Decimal Inch) | 0.0866" |
| Max Depth of Cut (mm) | 2.20mm |
| Cutting Width (Decimal Inch) | 0.0394 - 0.1181" |
| Cutting Width (mm) | 1.00 - 3.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.0394" |
| Cutting Width Minimum (mm) | 1.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1181" |
| Cutting Width Maximum (mm) | 3.00mm |
| Connection Diameter (Decimal Inch) | 0.6299" |
| Connection Diameter (mm) | 16.00mm |
| Minimum Bore Diameter (Decimal Inch) | 0.4724" |
| Minimum Bore Diameter (mm) | 12.00mm |
| Shank Height (Decimal Inch) | 0.5906" |
| Shank Height (mm) | 15.00mm |
| Tool Entering Angle ( Degree) | 5 Degree |
| Application | Internal Grooving | Small Parts Machining |

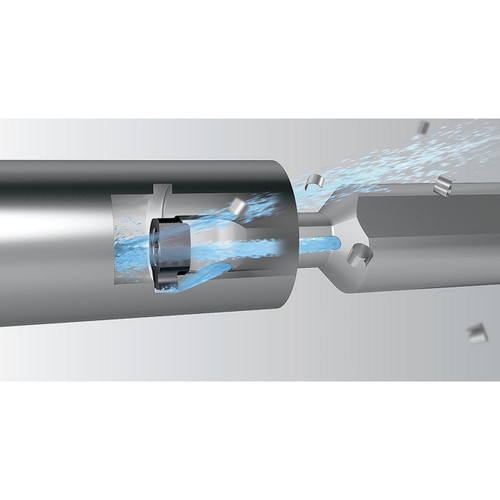

| Coolant Through (Yes/No) | Yes |
| Grooving Type | Internal Grooving |
| Hand | Left Hand |
| Insert Holding Method | Screw |
| Material | Steel |
