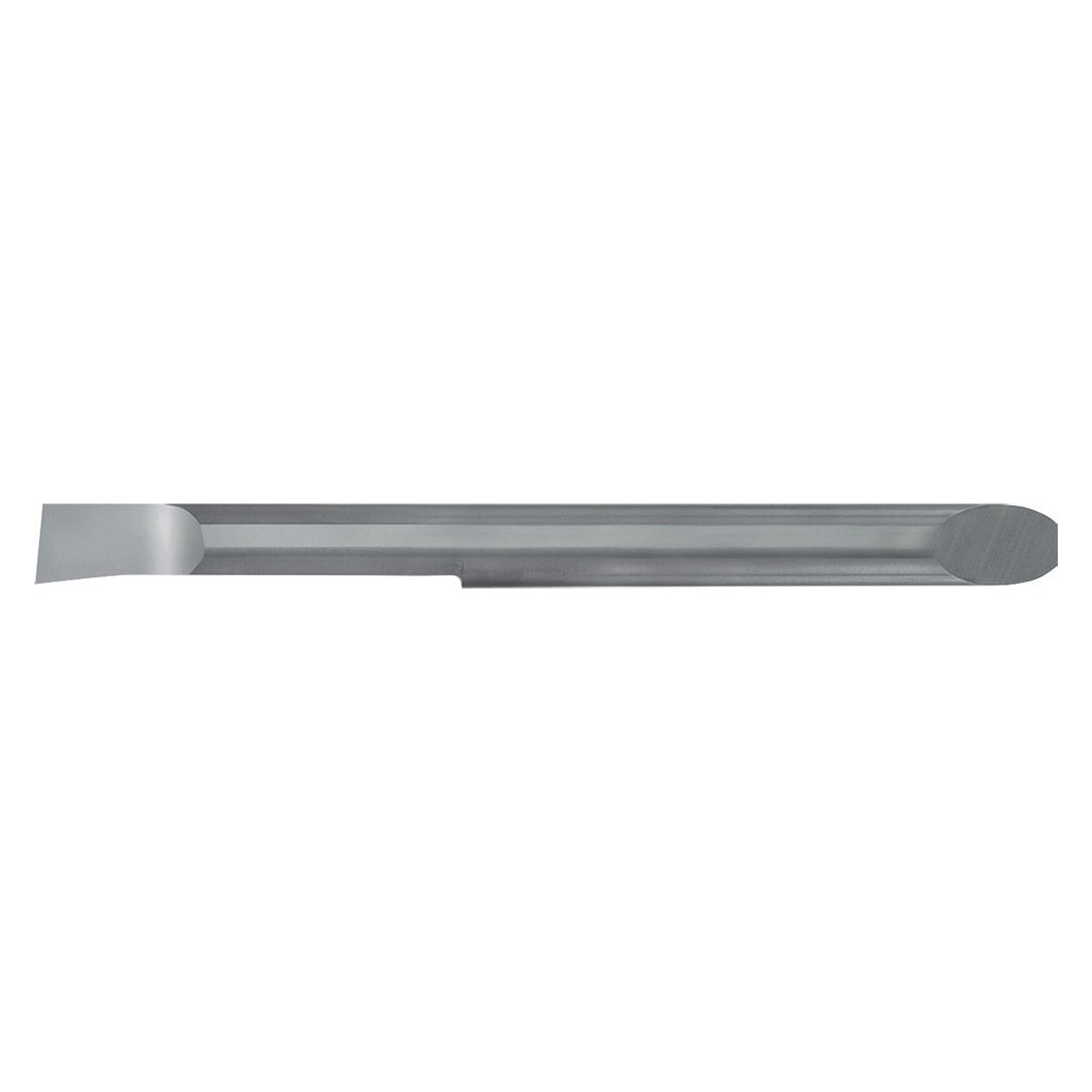

Features:
- Adjustable overhang length (EZ Adjust structure)
- Minimized deviation of the cutting diameter
- Various EZ bar sizes and styles for a wide range of small internal machining applications
- Without chipbreaker for non-ferrous machining applications
- Compatible with EZH020 style sleeves
Product Specifications
| EDP Number | TWJ03080 |
| Connection Diameter (Decimal Inch) | 0.0787" |
| Connection Diameter (mm) | 2.00mm |
| Minimum Bore Diameter (Decimal Inch) | 0.0984" |
| Minimum Bore Diameter (mm) | 2.50mm |
| Shank Height (Decimal Inch) | 0.0717" |
| Shank Height (mm) | 1.82mm |
| Tool Entering Angle ( Degree) | 95 Degree |
| Usable Length (Decimal Inch) | 0.3150" |
| Usable Length (mm) | 8.00mm |
| Corner Radius (Decimal Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Application | Micro Boring |
| Coating Process | Uncoated |
| Cutter Pitch | PVD |
| Hand | Right Hand |
| Insert Grade | GW05 |
| Insert Holding Method | Screw |
| Material | Carbide |
| Primary Workpiece Material | Non-Ferrous Materials (N) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
EZB;Minimum Bore Diameter (Decimal Inch)=0.0984"""
Minimum Bore Diameter (mm):
2.50mm
Maximum Bore Depth (Decimal Inch):
0.3150"
Maximum Bore Depth (mm):
8.00mm
Shank Diameter (Decimal Inch):
0.0787"
Shank Diameter (mm):
2.00mm
