Features:
| EDP Number | TWJ03079 |
| Connection Diameter (Decimal Inch) | 0.0669" |
| Connection Diameter (mm) | 1.70mm |
| Minimum Bore Diameter (Decimal Inch) | 0.0787" |
| Minimum Bore Diameter (mm) | 2.00mm |
| Shank Height (Decimal Inch) | 0.0591" |
| Shank Height (mm) | 1.50mm |
| Tool Entering Angle ( Degree) | 95 Degree |
| Usable Length (Decimal Inch) | 0.2756" |
| Usable Length (mm) | 7.00mm |
| Corner Radius (Decimal Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |

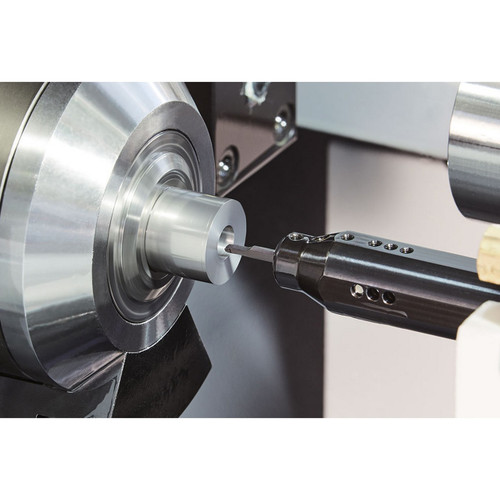

| Application | Micro Boring |
| Coating Process | Uncoated |
| Cutter Pitch | PVD |
| Hand | Right Hand |
| Insert Grade | GW05 |
| Insert Holding Method | Screw |
| Material | Carbide |
| Primary Workpiece Material | Non-Ferrous Materials (N) |
