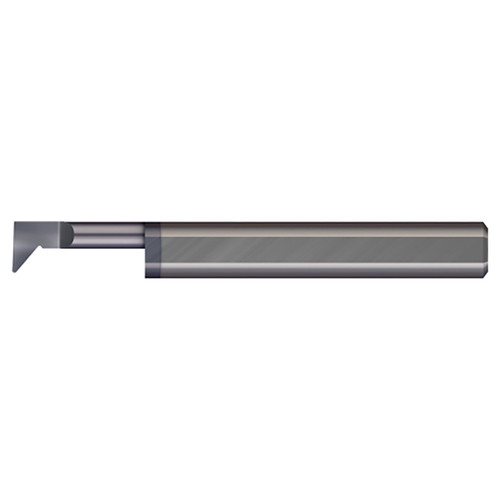

Micro 100 PR-120500X | 0.1200" Minimum Bore Diameter x 1/2" Maximum Bore Depth x 0.008" Radius x 3/16" Shank x 2.00" OAL Brazed Carbide Radial Profiling Tool

$34.55
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
PR
Type:
Turning
Cutting Direction:
Right Hand
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.00"
Minimum Bore Diameter (Decimal Inch):
0.1200"
Maximum Bore Depth (Inch):
1/2"
Maximum Bore Depth (Decimal Inch):
0.500"
Finish/Coating:
AlTiN
Radius (Decimal Inch):
0.008"
Ships:
From Partner Facility
SKU:
25146372
UPC:
Weight:
0.11 LBS
Shipping:
Calculated at Checkout
Product Specifications
Min Bore Diameter (Decimal Inch) 0.1200"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 1/2"
Max Bore Depth (Decimal Inch) 0.500"
Projection (Decimal Inch) 0.0500"
Shank Diameter (Inch) 3/16"
Shank Diameter (Decimal Inch) 0.1875"
Centerline Offset (Decimal Inch) 0.0263"
Corner Radius (Decimal Inch) 0.008"
Neck Diameter (Decimal Inch) 0.0700"
Overall Length (Inch) 2"
Overall Length (Decimal Inch) 2.00"
Tooth Width (Decimal Inch) 0.0420"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
PR
Type:
Turning
Cutting Direction:
Right Hand
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.00"
Minimum Bore Diameter (Decimal Inch):
0.1200"
Maximum Bore Depth (Inch):
1/2"
Maximum Bore Depth (Decimal Inch):
0.500"
Finish/Coating:
AlTiN
Radius (Decimal Inch):
0.008"
