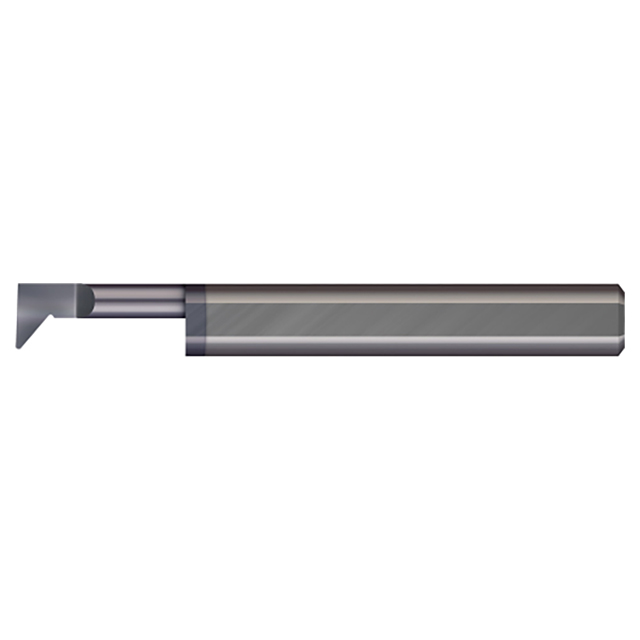

| Min Bore Diameter (Decimal Inch) | 0.1200" |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Inch) | 1/4" |
| Max Bore Depth (Decimal Inch) | 0.250" |
| Projection (Decimal Inch) | 0.0500" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Centerline Offset (Decimal Inch) | 0.0263" |
| Corner Radius (Decimal Inch) | 0.008" |
| Neck Diameter (Decimal Inch) | 0.0700" |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.00" |
| Tooth Width (Decimal Inch) | 0.0420" |
