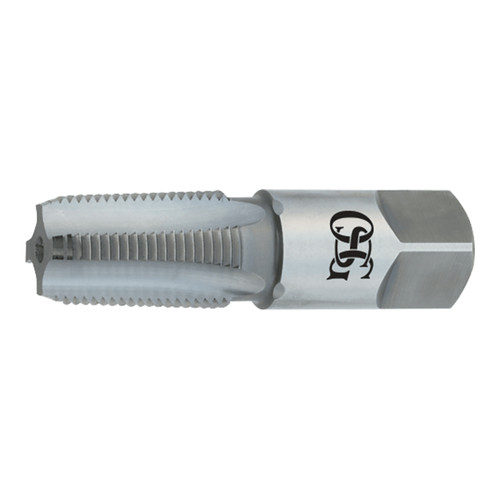

OSG 1736100 | EXOTAP 1/4"-18 TPI Thread Size x 1.062" Thread Length x 0.563" Shank 4 Flute NPT, ANPT Bright Coated HSS-CO Standard Pipe Tap

$63.69
Brand:
OSG
Overall Length (Decimal Inch):
2.4370"
Shank Diameter (Decimal Inch):
0.5630"
Number of Flutes:
4
Material:
HSS-CO
Finish/Coating:
Bright
Cutting Direction:
Right Hand
Neck Length (Decimal Inch):
1.3180"
Square Length (Decimal Inch):
0.4380"
Thread Length (Decimal Inch):
1.0620"
interval quantity:
1
SKU:
18002634
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1736100 | EXOTAP 1/4"-18 TPI Thread Size x 1.062" Thread Length x 0.563" Shank 4 Flute NPT, ANPT Bright Coated HSS-CO Standard Pipe Tap

EXOTap MOLD is the premium pipe Tap solution for threading die steels such as P20 and H13.

Features & Benefits:

  • HSS-CO Material: Increased toughness and Wear Resistance
  • NPT or ANPT: For standard NPT Tapered pipe Applications
Product Specifications
Manufacturer Part Number1736100
Major Diameter (Decimal Inch)0.250"
Neck Length (Decimal Inch)1.318"
Number of Flutes4
Overall Length (Decimal Inch)2.437"
Shank Diameter (Decimal Inch)0.563"
Square Length (Decimal Inch)0.438"
Square Width (Decimal Inch)0.421"
Minimum Tap Drill Size (Decimal Inch)0.438"
Thread Length (Decimal Inch)1.062"
Thread Size (Inch)1/4"
CoatingBright
MaterialHSS-CO
Product TypeStandard Pipe Tap
