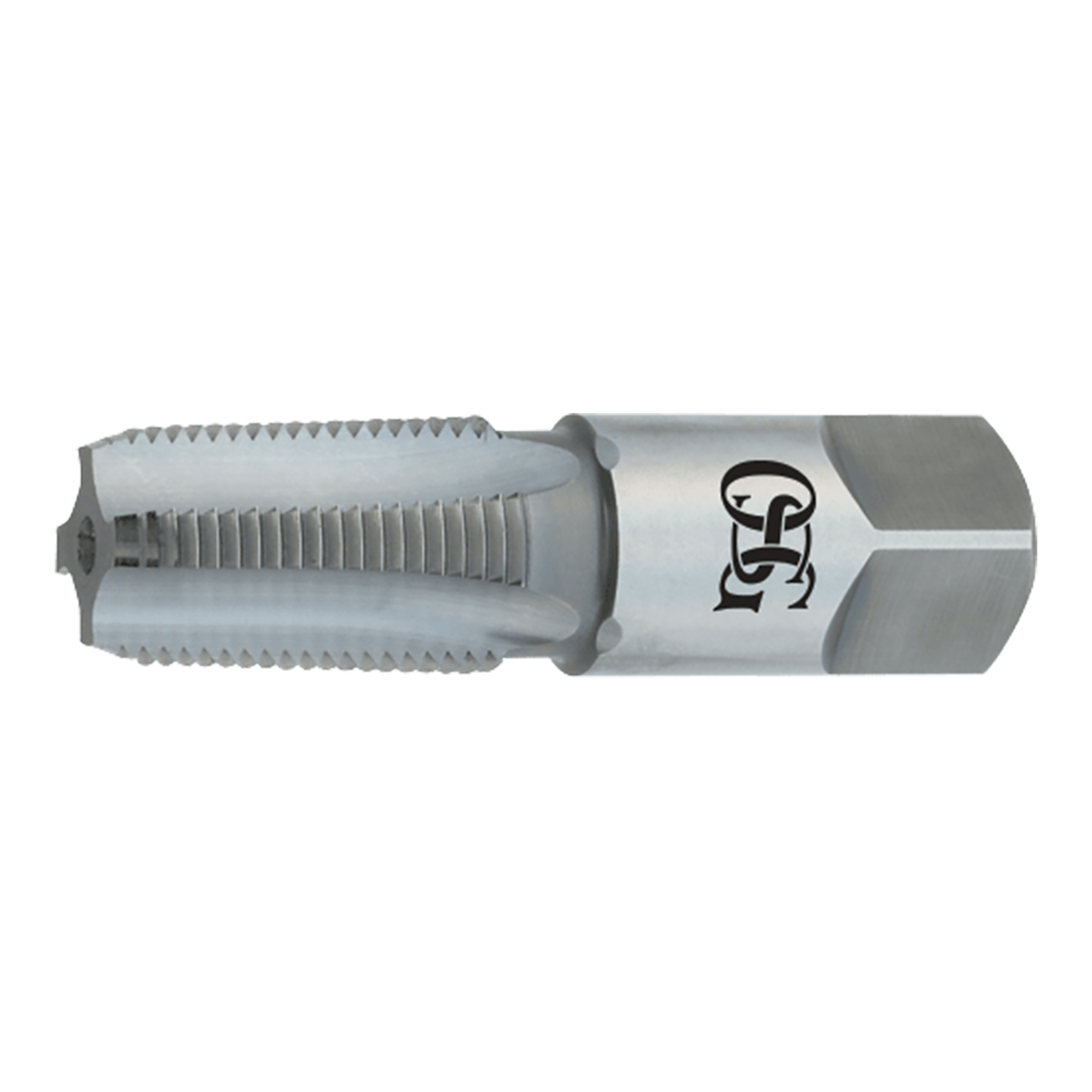

OSG 1310300 | 1/4" - 18 Thread Size x 0.563" Shank x 1.062" Thread Length x 2.437" OAL NPT, ANPT 4 Flute Right Hand Bright Coated HSS 108 Standard Pipe Tap

$63.49 $28.57
(You save $34.92)
Brand:
OSG
Number of Flutes:
4
Material:
HSS
Finish/Coating:
Bright
Thread Size (Inch):
1/4"
interval quantity:
1
SKU:
15029171
UPC:
Weight:
0.13 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1310300 | 1/4" - 18 Thread Size x 0.563" Shank x 1.062" Thread Length x 2.437" OAL NPT, ANPT 4 Flute Right Hand Bright Coated HSS 108 Standard Pipe Tap

General Purpose spiral point tap series that provides exceptional value for all general threading applications.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiN, TiCN coating: Improves wear resistance for extended tap life
  • ANPT, NPT, NPTF: For standard and dry seal tapered pipe thread applications

Product Specifications
Manufacturer Part Number1310300
Cutting DirectionRight Hand
List NameGENERAL PURPOSE-NPT/ANPT
Major Diameter (Decimal Inch)0.250"
Neck Length (Decimal Inch)1.318"
Number of Flutes4
Overall Length (Decimal Inch)2.437"
Shank Diameter (Decimal Inch)0.563"
Square Length (Decimal Inch)0.438"
Square Width (Decimal Inch)0.421"
MaterialHSS
CoatingBright
Tap Drill Size Minimum (Decimal Inch)0.438"
Thread Length (Decimal Inch)1.062"
Thread Size (Inch)1/4"
Thread TypeNPT, ANPT
Thread Per Inch (TPI)18 TPI
Series108
Product TypeStandard Pipe Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
