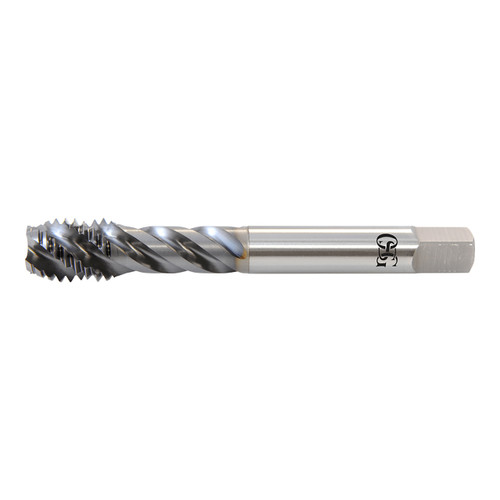

EXOTAP VC-10 is the premium solution for tapping in difficult to machine materials.
Features & Benefits:
- Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
- Spiral Flute: For blind hole applications
- Steam Oxide surface treatment: S/O increases mechanical lubricity
- OSG V-Coating: Increased hardness, lubricity & wear resistance
Product Specifications
| Manufacturer Part Number | 35102308 |
| Chamfer Length (Decimal Inch) | 0.148" |
| Major Diameter (mm) | 24.00mm |
| Neck Length (mm) | 68.40mm |
| Number of Flutes | 4 |
| Overall Length (mm) | 140.00mm |
| Pitch (mm) | 1.50mm |
| Shank Diameter (mm) | 19.30mm |
| Square Length (mm) | 19.05mm |
| Square Width (mm) | 14.48mm |
| Maximum Tap Drill Size (mm) | 22.68mm |
| Minimum Tap Drill Size (mm) | 22.38mm |
| Thread Length (mm) | 24.00mm |
| Thread Size | M24 |
| Coating | V |
| Material | VC-10 |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 15 Degree |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Overall Length (mm):
140.00mm
Shank Diameter (mm):
19.30mm
Helix Angle:
15 Degree
Number of Flutes:
4
Material:
VC-10
Finish/Coating:
V
Cutting Direction:
Right Hand
Neck Length (mm):
68.40mm
Square Length (mm):
19.05mm
Pitch (mm):
2.50mm
Thread Length (mm):
24.00mm
Chamfer Length (Decimal Inch):
0.2460"
