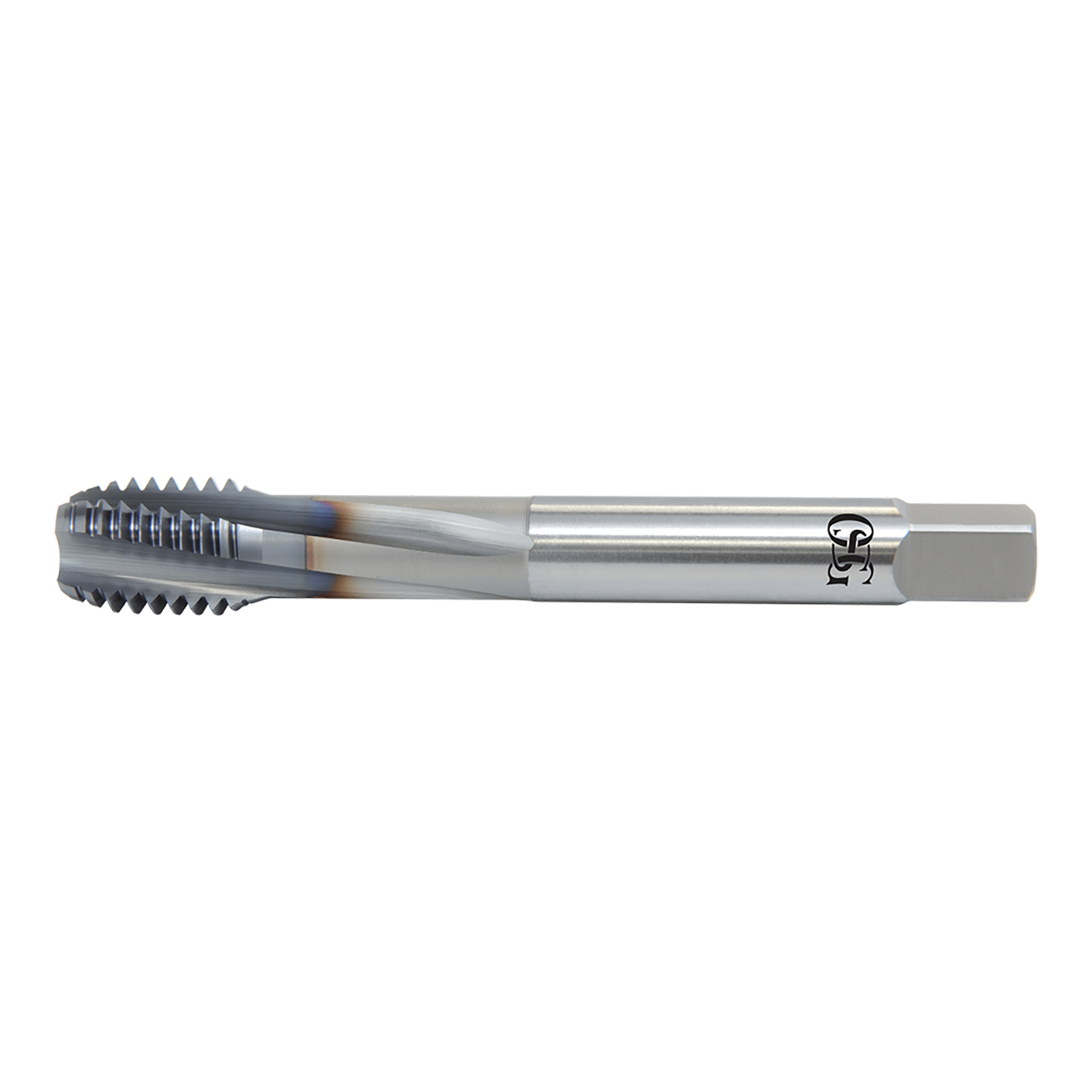

OSG 34822308 | EXOTAP MF M24.00x1.50mm Thread Size x 19.30mm Shank x 24.00mm Length x 14.00mm OAL Modified Bottom (2.5P) Chamfer D6 4 Flute V Coated VC-10 348TI Spiral Flute Tap

OSG 34822308 | EXOTAP MF M24.00x1.50mm Thread Size x 19.30mm Shank x 24.00mm Length x 14.00mm OAL Modified Bottom (2.5P) Chamfer D6 4 Flute V Coated VC-10 348TI Spiral Flute Tap

SKU: 18005486 Weight: 0.64 LBS Minimum Purchase: 1 unit
UPC:
$642.16 $597.21
(You save $44.95)
Shipping: Free Shipping

About This Item

EXOTAP VC-10 Ti is the premium solution for Titanium alloys and Heat Resistant Super Alloys.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Flute: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number34822308
Chamfer Length (Decimal Inch)0.148"
Chamfer TypeModified Bottom (2.5P)
Coolant ThroughYes
Cutting DirectionRight Hand
Helix Angle (Degree)10 Degree
Helix DirectionRight Hand
List NameVC-10 VPO-Ti-SFT
Major Diameter (mm)24.00mm
Neck Length (mm)68.40mm
Number of Flutes4
Overall Length (mm)140.00mm
Pitch (mm)1.50mm
Shank Diameter (mm)19.30mm
Square Length (mm)19.05mm
Square Width (mm)14.48mm
MaterialVC-10
CoatingV
Tap Drill Size Maximum (mm)22.68mm
Tap Drill Size Minimum (mm)22.38mm
Thread Length (mm)24.00mm
Thread LimitD6
Thread SizeM24
Thread TypeMF
Series348TI
Product TypeSpiral Flute Tap
