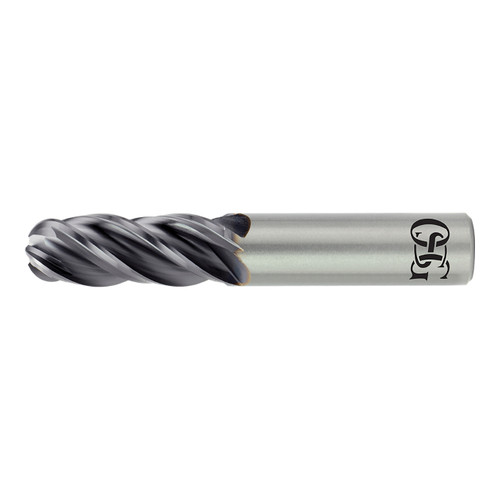

High Performance Variable Index End Mills for Difficult to Machine Materials
Features & Benefits:
- Unequal Flute Spacing: Reduces vibration from harmonic vibration, increasing life and enabling more aggressive milling
- Raised Land Configuration: Provides additional stability when taking deeper depths of cut for more consistent performance during roughing
- TiAIN Coating: Provides stable Wear Resistance in high temperature milling conditions
Product Specifications
| Manufacturer Part Number | VG441-2500-BN |
| Corner Radius (Decimal Inch) | 0.125" |
| Cutting Diameter Tolerance (Decimal Inch) | +0 / -0.0015" |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 1/4" |
| Diameter (Decimal Inch) | 0.250" |
| Helix Angle (Degree) | 35 Degree |
| Helix Direction | Right Hand |
| Length of Cut (Decimal Inch) | 0.750" |
| List Name | VGX BN |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 2.500" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Tolerance | h6 |
| Material | Carbide |
| Coating | TiAlN |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Corner Radius (Decimal Inch):
0.1250"
Cutting Direction:
Right Hand
Diameter (Inch):
1/4"
Diameter (Decimal Inch):
0.2500"
Helix Angle:
35 Degree
Length of Cut (Decimal Inch):
0.7500"
Number of Flutes:
4
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Decimal Inch):
0.2500"
Material:
Carbide
Finish/Coating:
TiAlN
