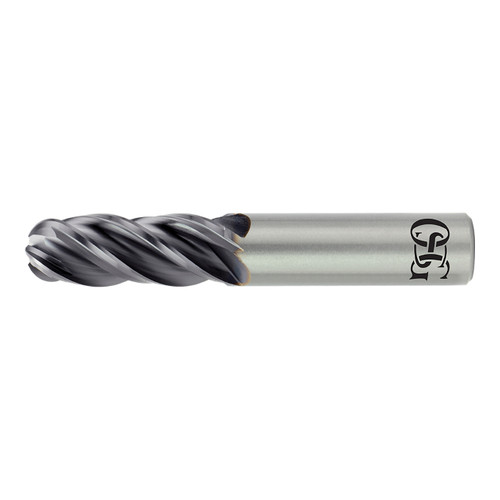

High Performance Variable Index End Mills for Difficult to Machine Materials.
Features & Benefits:
| Manufacturer Part Number | VG441-3125-BN |
| Corner Radius (Decimal Inch) | 0.156" |
| Cutting Diameter Tolerance (Decimal Inch) | +0 / -0.0015" |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 5/16" |
| Diameter (Decimal Inch) | 0.313" |
| Helix Angle (Degree) | 35 Degree |
| Helix Direction | Right Hand |
| Length of Cut (Decimal Inch) | 0.750" |
| List Name | VGX BN |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 2.500" |
| Shank Diameter (Decimal Inch) | 0.313" |
| Shank Tolerance | h6 |
| Material | Carbide |
| Coating | TiAlN |
| Series | VG441BN |
| Product Type | Ball End Mill |
