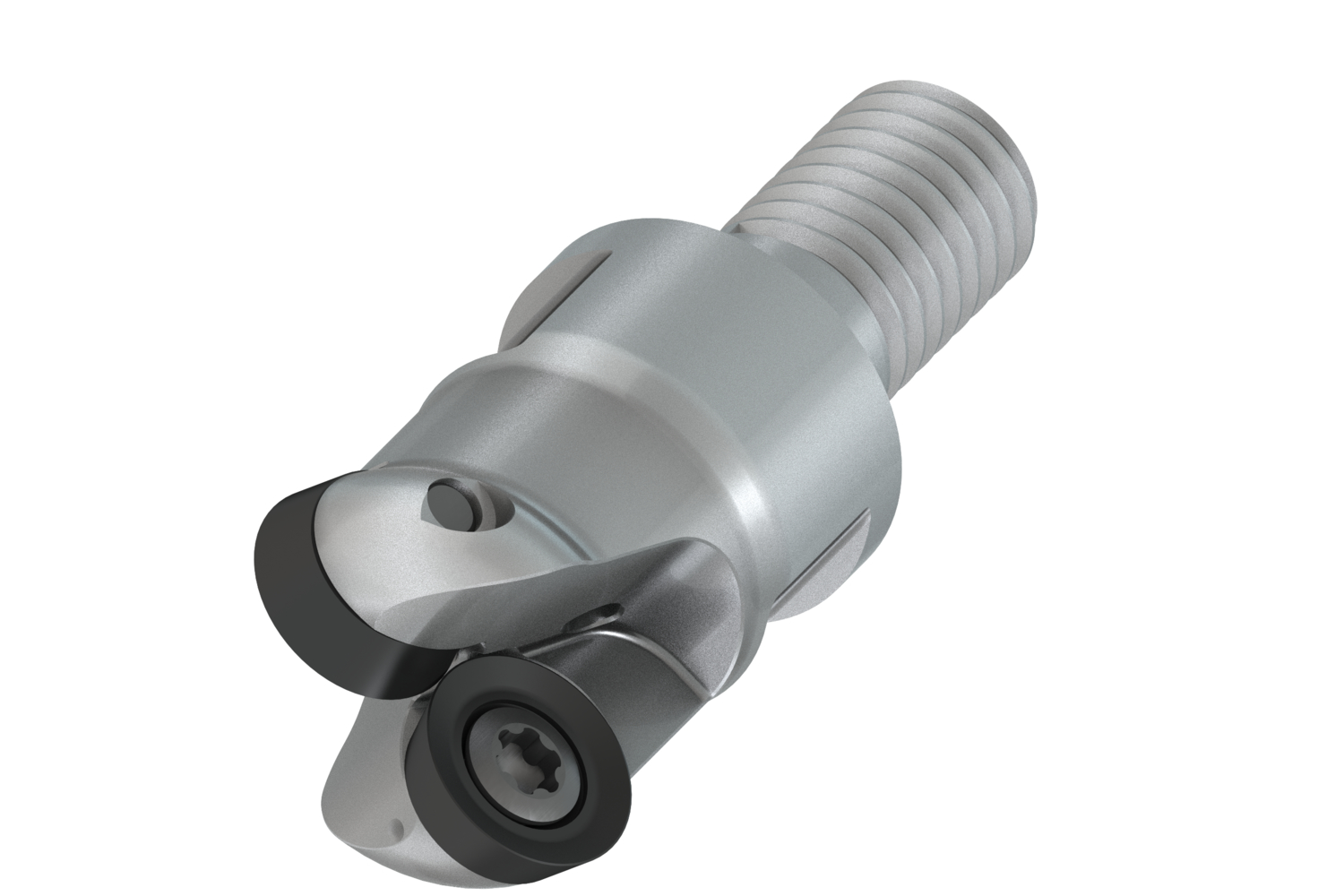

Copy face mill with positve/negative geometry which utilises 2 of RD.. 1003MOT or RDHT 1003MO-FA single-sided inserts, cutting diameter to maximum 0.750" with M10 threaded shank for standard modular tool-holders, 1.102" functional and 1.850" protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 0.098".
Product Specifications
| EDP Number | 7999187 |
| Peripheral Effective Cutting Edge Count | 2 |
| Max Depth of Cut (Inch) | 0.098" |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 1 |
| Max Rotational Speed | 30800 |
| Connection Diameter (mm) | 10.5 mm |
| Connection Diameter (Inch) | 0.413" |
| Hub Diameter (Inch) | 0.709" |
| Max Cutting Diameter (Inch) | 0.75" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (Inch) | 1.102" |
| Thread Diameter Size | M10 |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
