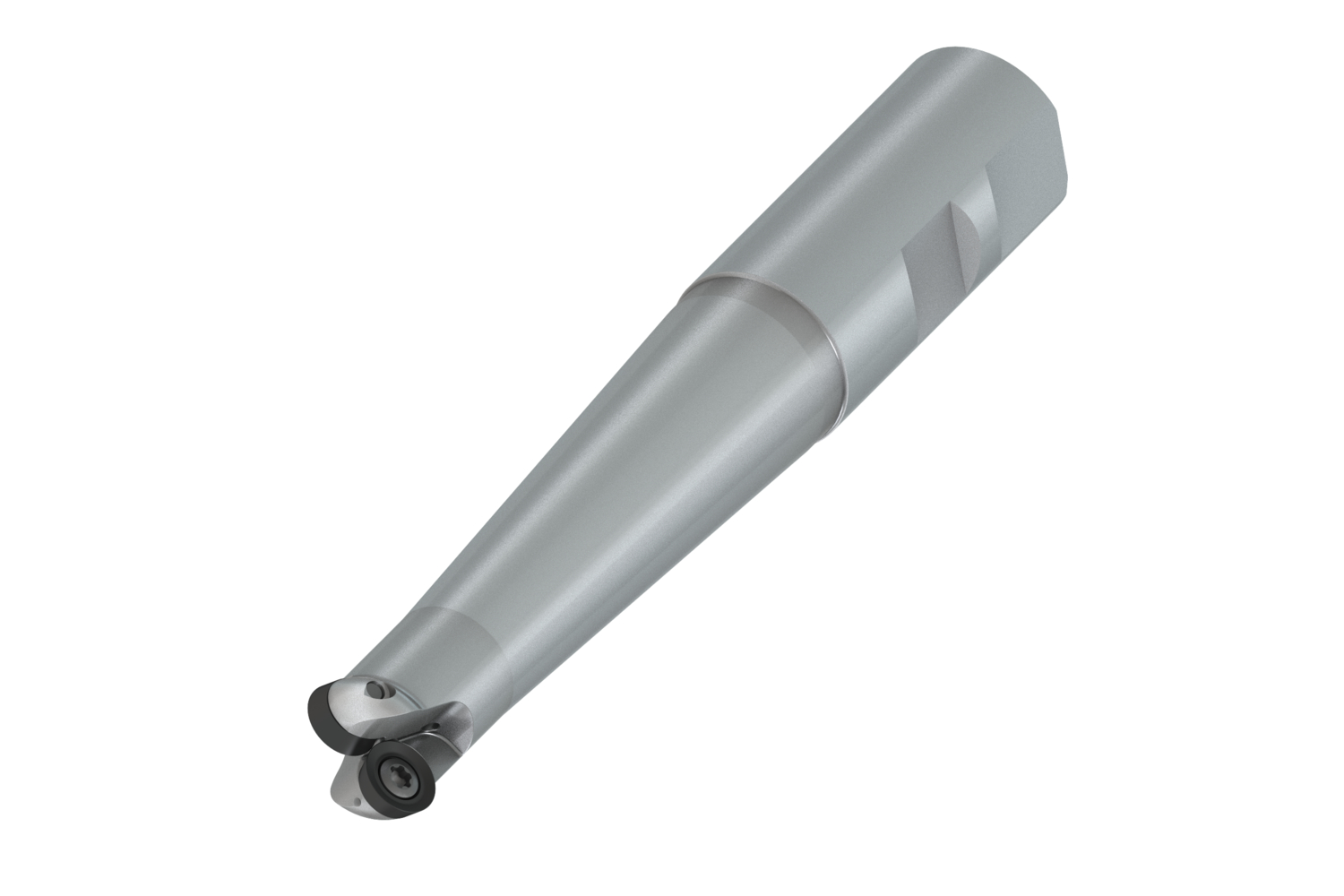

Copy face mill with positve/negative geometry which utilises 2 of RD.. 1003MOT or RDHT 1003MO-FA single-sided inserts, cutting diameter to maximum 0.750" with 1.000" Weldon shank according to DIN 1835B, 4.000" usable and 6.024" overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 0.098".
Product Specifications
| EDP Number | 7999185 |
| Peripheral Effective Cutting Edge Count | 2 |
| Max Depth of Cut (Inch) | 0.098" |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 1 |
| Max Rotational Speed | 30800 |
| Connection Diameter (mm) | 25.4 mm |
| Connection Diameter (Inch) | 1" |
| Max Cutting Diameter (Inch) | 0.75" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (Inch) | 4 mm |
