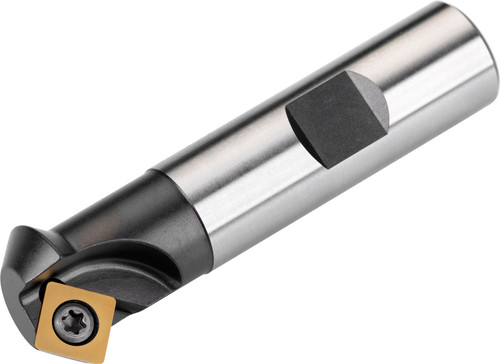

Chamfer mill with double negative geometry which utilises 1 off TCMT 16T304E-FM:T83.. or TCMT 16T308E-FM:T83.. single-sided insert, cutting diameter 5 to maximum 31 mm with 10 -80° approach angle and 25 mm Weldon shank according to DIN 1835B, 100 mm overall length for chamfering with a maximum depth of cut of 8.5 mm.
Product Specifications
| EDP Number | 6827937 |
| Insert Index Count | 1 |
| Tool Cutting Edge Angle | 10 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | -8 |
| Max Rotational Speed | 18100 |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Cutting Diameter (mm) | 5 mm |
| Max Cutting Diameter (mm) | 31 mm |
| Cutting Diameter (Inch) | 0.197" |
| Overall Length (mm) | |
| Overall Length (Inch) |
