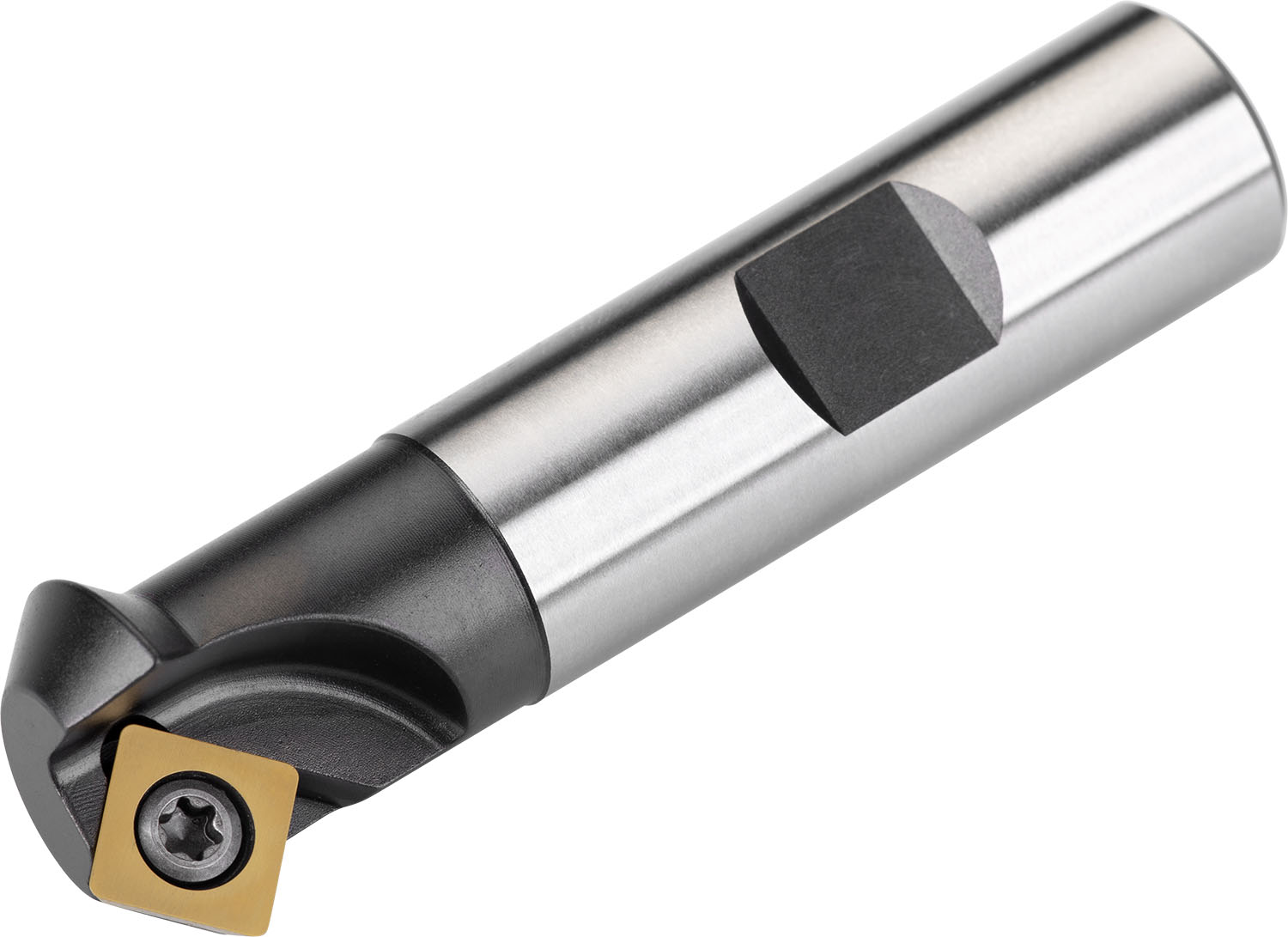

Chamfer mill with double negative geometry which utilises 2 off SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter .625'' with 45° approach angle and .625'' Weldon shank according to DIN 1835B, 2.969'' overall length for chamfering with a maximum depth of cut of .177''.
Product Specifications
| EDP Number | 6789708 |
| Peripheral Effective Cutting Edge Count | 2 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 32200 |
| Connection Diameter (mm) | 15.9 mm |
| Connection Diameter (Inch) | 0.625" |
| Cutting Diameter (mm) | 15.9 mm |
| Cutting Diameter (Inch) | 0.625" |
| Max Cutting Diameter (Inch) | 1.097" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (Inch) | 1.063 mm |
