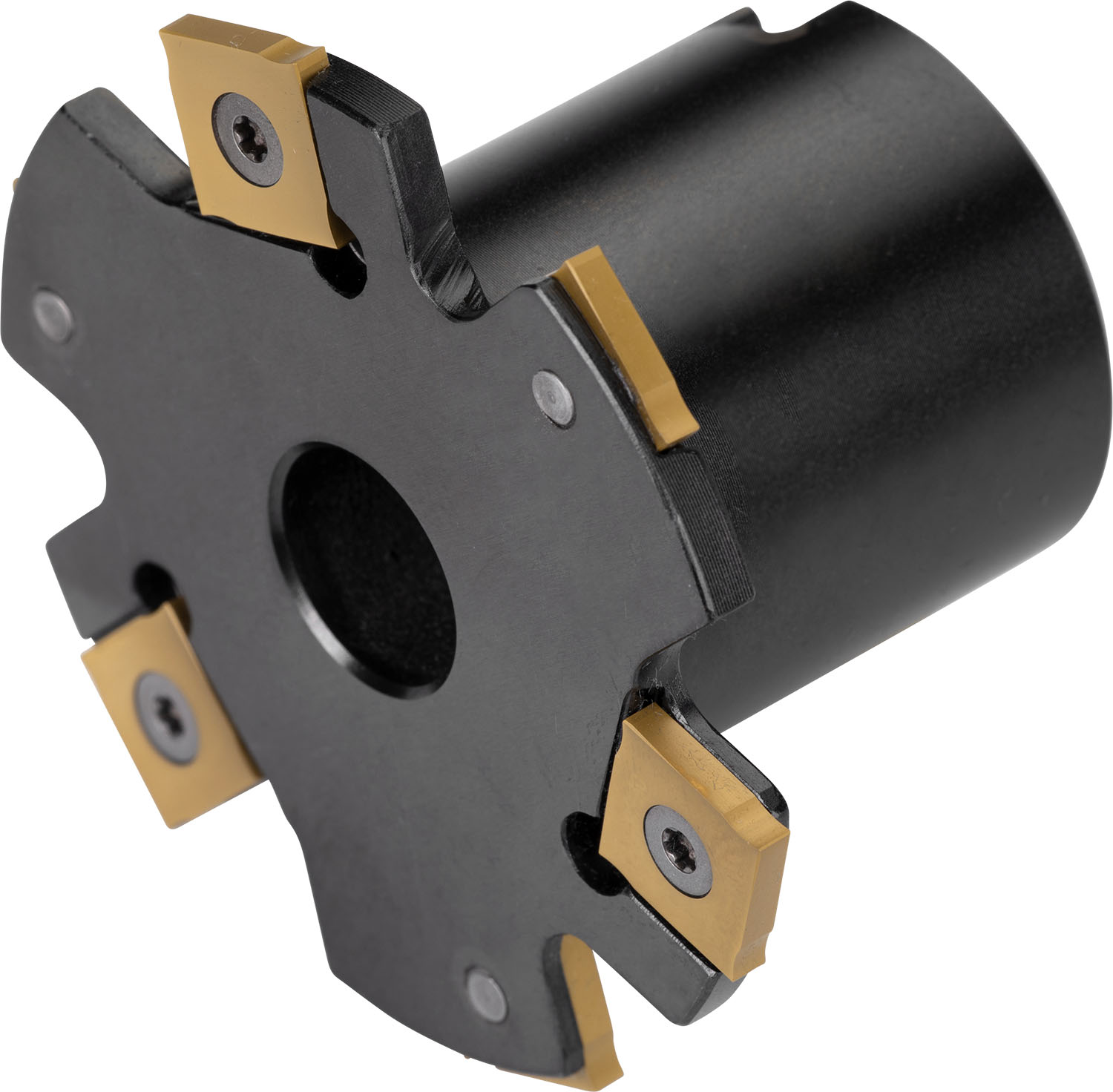

Pramet 63A03R-S90SN12N6 | 2.48" Diameter x 1.575" Functional Length Indexable Slotting Cutter

$789.60
Ships:
From Partner Facility
Ships:
From Partner Facility
interval quantity:
1
SKU:
23144812
Weight:
13.05 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Disc mill with positve/negative geometry which utilises 6 off SNHQ 1203.. double-sided inserts, cutting diameter 63 mm with 90° approach angle and 16 mm connection bore according to DIN 8030-A, 40 mm protrusion length for deep slot milling with a width of cut of 6 mm.

Product Specifications
EDP Number6758324
Face Effective Cutting Edge Count3
Peripheral Effective Cutting Edge Count6
Insert Index Count6
Cutting width (mm)6 mm
Max Cutting Depth (mm)10.5 mm
Axial Rake Angle-0.5
Radial Rake Angle2.5
Max Rotational Speed9500
Connection Bore Diameter (mm)16 mm
Hub Diameter (mm)34 mm
Cutting Diameter (mm)63 mm
Cutting Diameter (Inch)2.48"
Overall Length (mm)
Overall Length (Inch)
Number of Peripheral Edges in The Tool6
