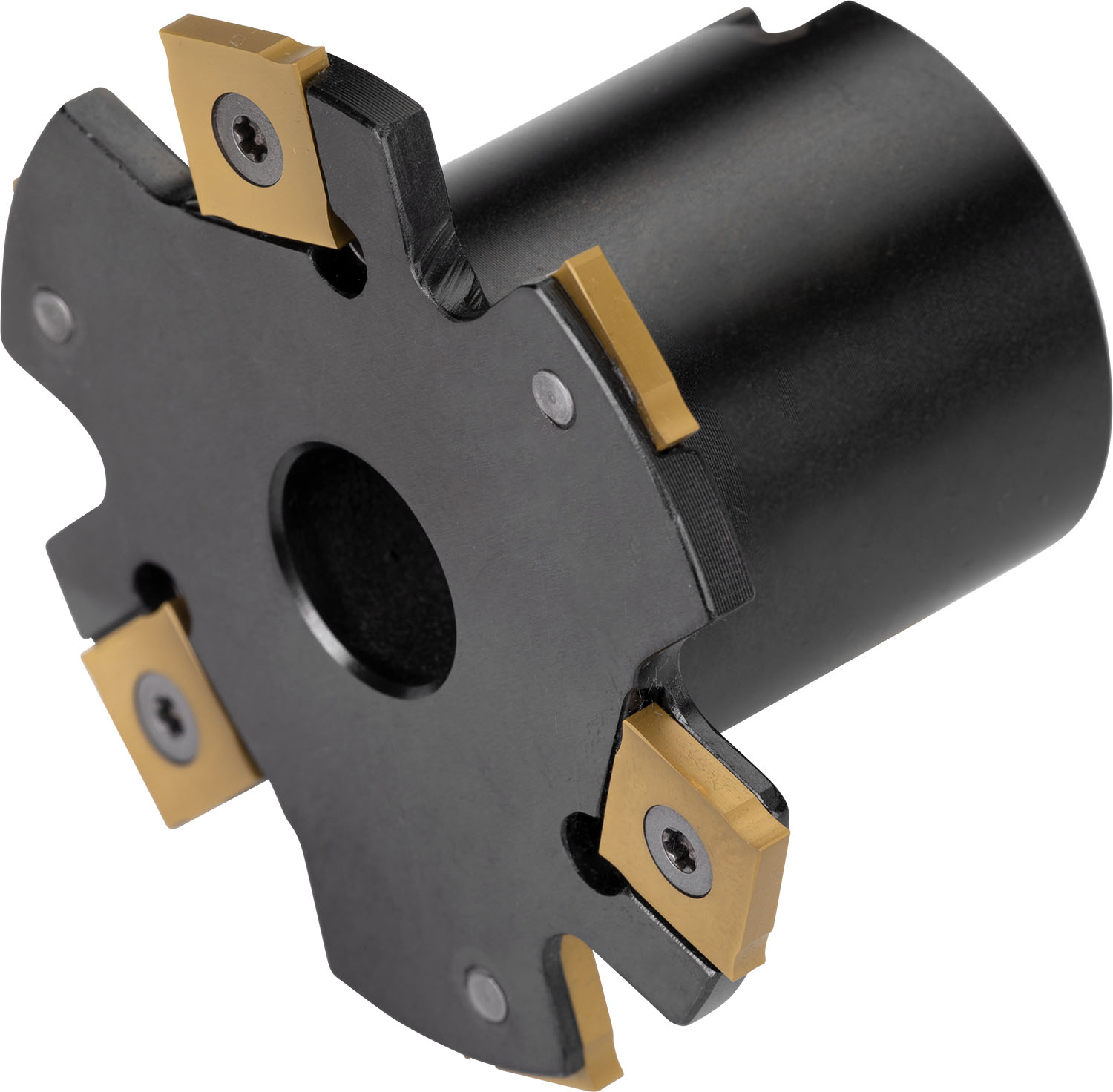

Disc mill with positve/negative geometry which utilises 6 off SNHQ 1103.. double-sided inserts, cutting diameter 63 mm with 90 Degree approach angle and 16 mm connection bore according to DIN 8030-A, 40 mm protrusion length for deep slot milling with a width of cut of 5 mm.
Product Specifications
| EDP Number | 6758323 |
| Face Effective Cutting Edge Count | 3 |
| Peripheral Effective Cutting Edge Count | 6 |
| Insert Index Count | 6 |
| Cutting width (mm) | 5 mm |
| Max Cutting Depth (mm) | 10.5 mm |
| Axial Rake Angle | -0.5 |
| Radial Rake Angle | 2.5 |
| Max Rotational Speed | 13900 |
| Connection Bore Diameter (mm) | 16 mm |
| Hub Diameter (mm) | 34 mm |
| Cutting Diameter (mm) | 63 mm |
| Cutting Diameter (Inch) | 2.48" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Number of Peripheral Edges in The Tool | 6 |
| Country of origin | Czech Republic |
