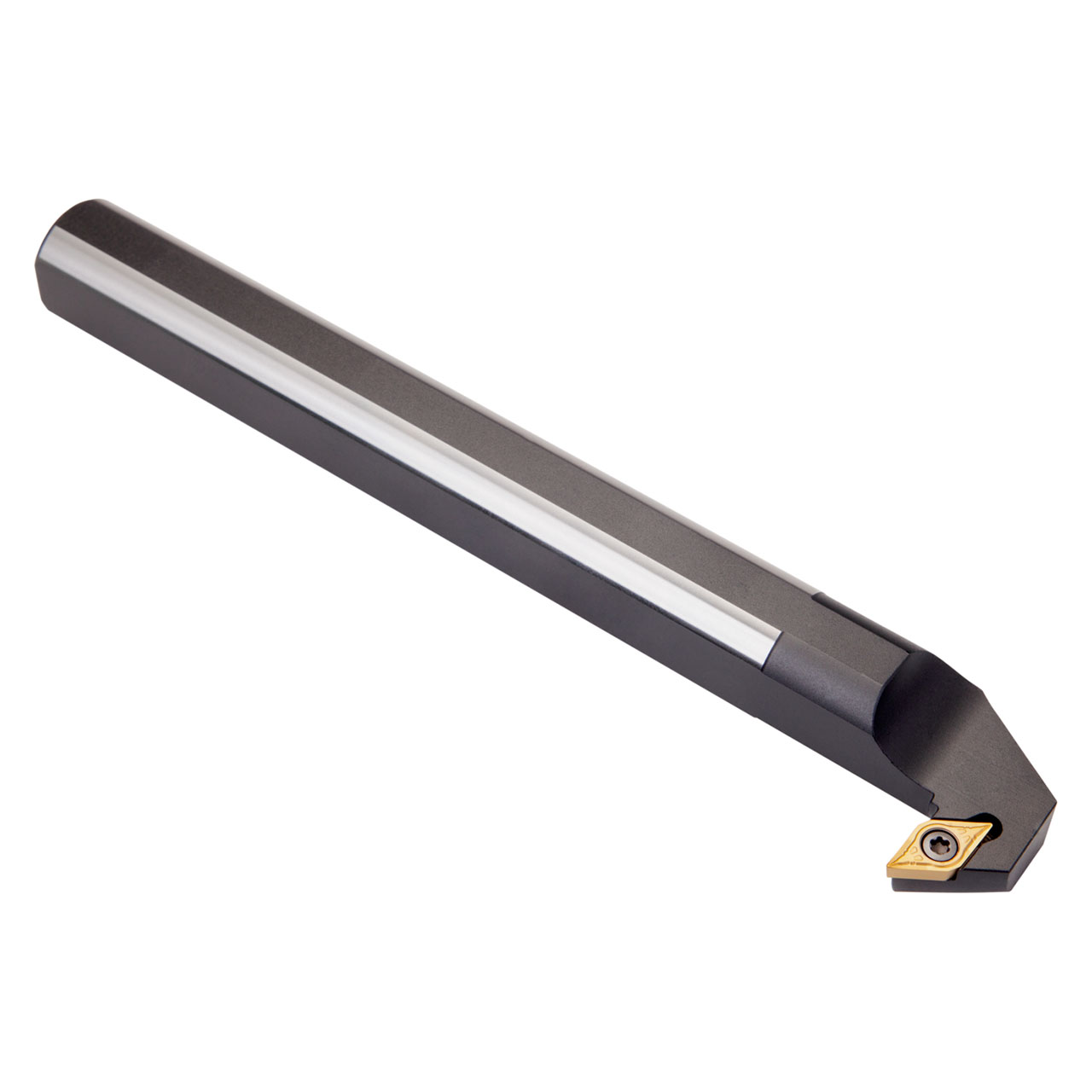

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525 mm, 3.97 mm thick (ISO designation DC.. 11T3.. ), left hand back cutting with off-set shank, steel without coolant hole, 40 mm diameter x 300 mm long for back chamfering.
Product Specifications
| EDP Number | 6756733 |
| Functional Width (mm) | |
| Inclination Angle | -5 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 40 mm |
| Connection Diameter (Inch) | 1.575" |
| Shank Height (mm) | 38 mm |
| Shank Width (mm) | 38 mm |
| Minimum Bore Diameter (mm) | 63 mm |
| Overall Length (mm) | 322 mm |
| Overall Length (Inch) | 12.677" |
| Functional Length (mm) | 300 mm |
| Direction of Tool | Left |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
1-1/2"
Shank Width (Decimal Inch):
1.5000"
Shank Width (mm):
38mm
Shank Height (Inch):
1-1/2"
Shank Height (Decimal Inch):
1.5000"
Shank Height (mm):
38mm
