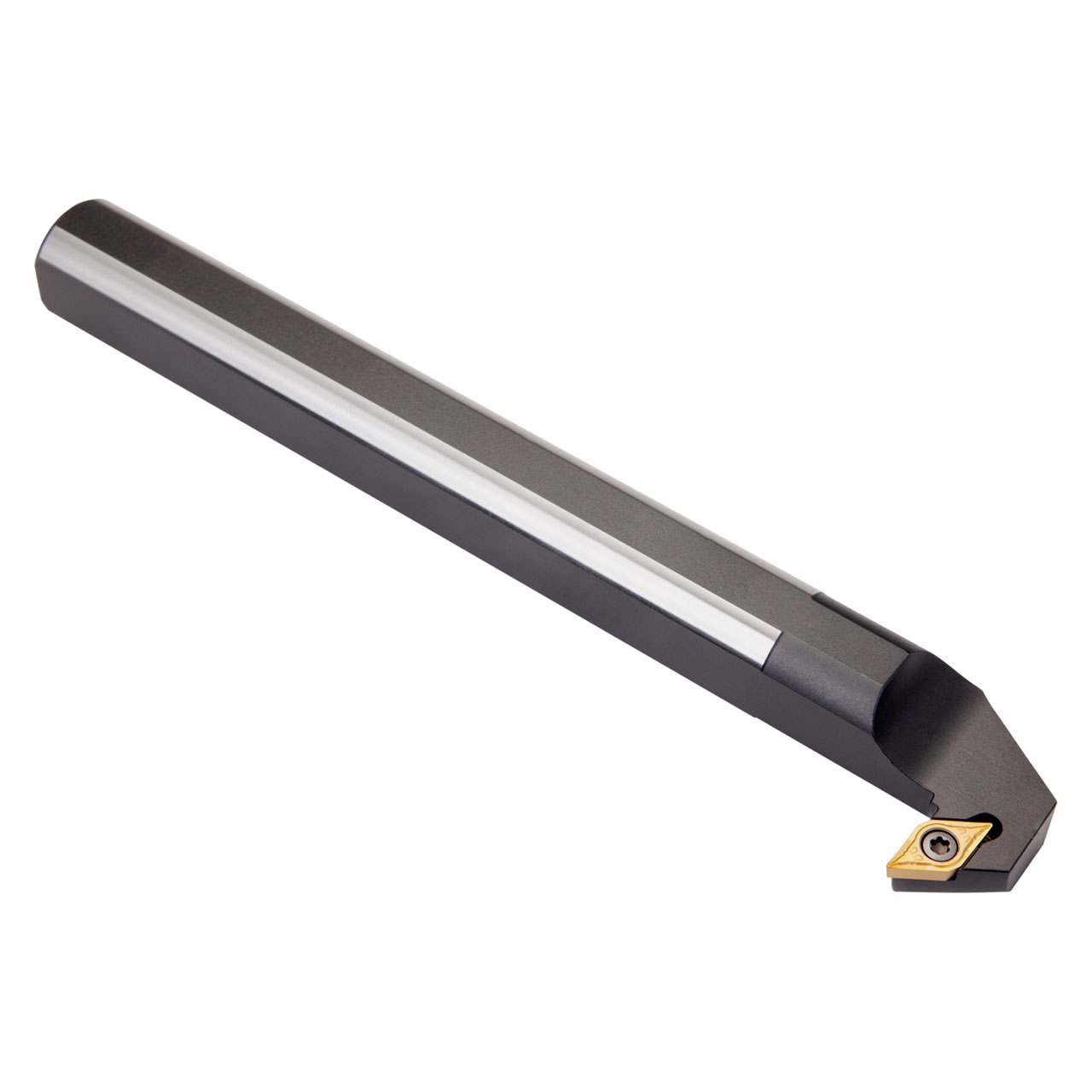

Screw clamp boring bar for holding a 55 Degree rhombus positive insert with an inscribed circle diameter of 9.525 mm, 3.97 mm thick (ISO designation DC.. 11T3.. ), left hand back cutting with off-set shank, steel without coolant hole, 25 mm diameter x 200 mm long for back chamfering.
Product Specifications
| EDP Number | 6756852 |
| Functional Width (mm) | |
| Inclination Angle | -3 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Shank Height (mm) | 23 mm |
| Shank Width (mm) | 23 mm |
| Minimum Bore Diameter (mm) | |
| Overall Length (mm) | 218 mm |
| Overall Length (Inch) | 8.583" |
| Functional Length (mm) | 200 mm |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
