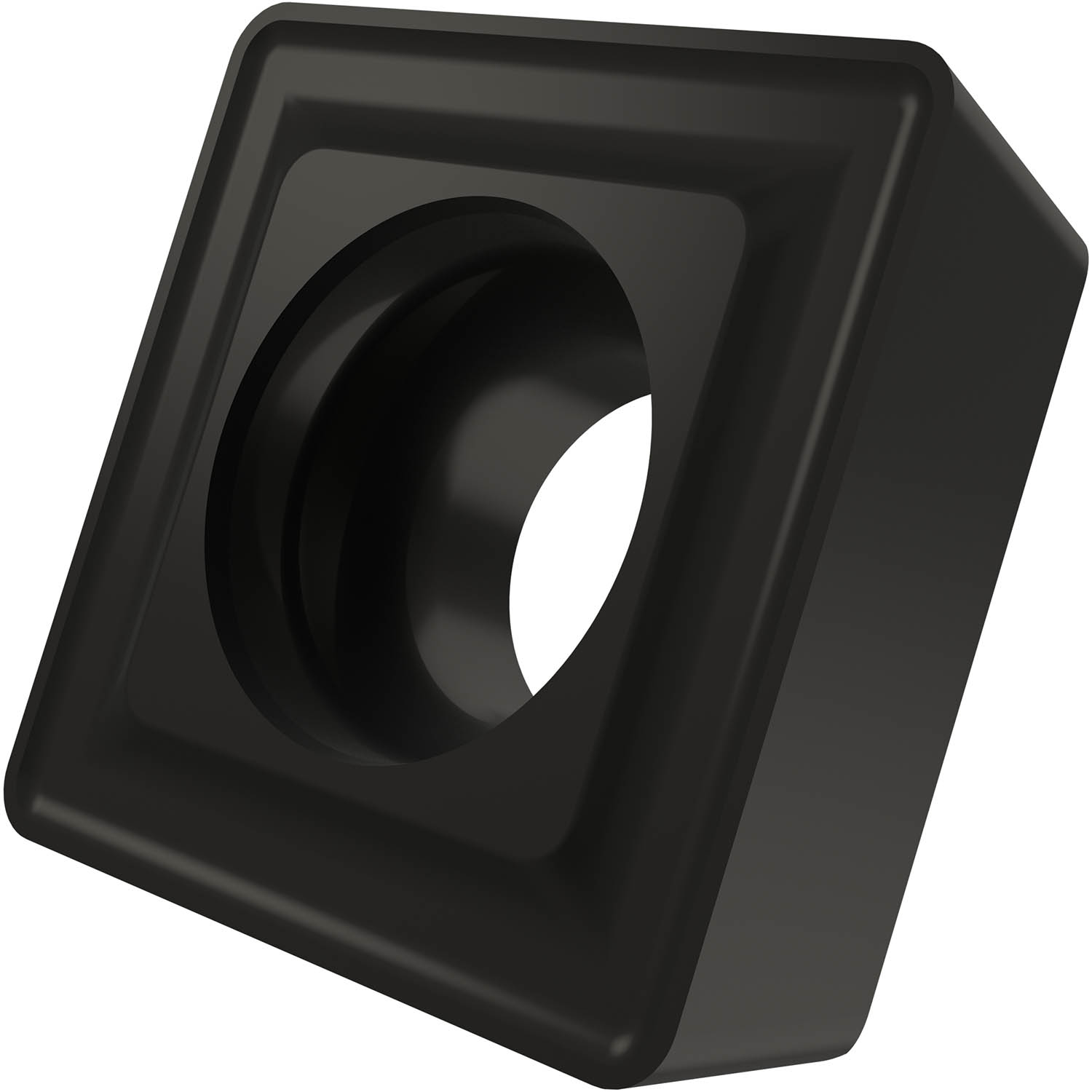

Drilling insert to fit the peripheral pocket of PRAMET 80.D indexable drills within a diameter range from 28 up to 34mm, D9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P35 and K15-K35 with UD geometry for machining of steel and cast-iron.
Product Specifications
| EDP Number | 6754586 |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.5 mm |
| Fixing Hole Diameter (Inch) | 0.177" |
| Cutting Edge Length (mm) | 9.525 mm |
| Cutting Edge Length (Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.525 mm |
| Inscribed Circle Diameter (Inch) | 0.375" |
| Insert Thickness (mm) | 3.97 mm |
| Insert Thickness (Inch) | 0.156" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | MT-CVD |
| Coating | D9335 |
| Surface Color | Black |
