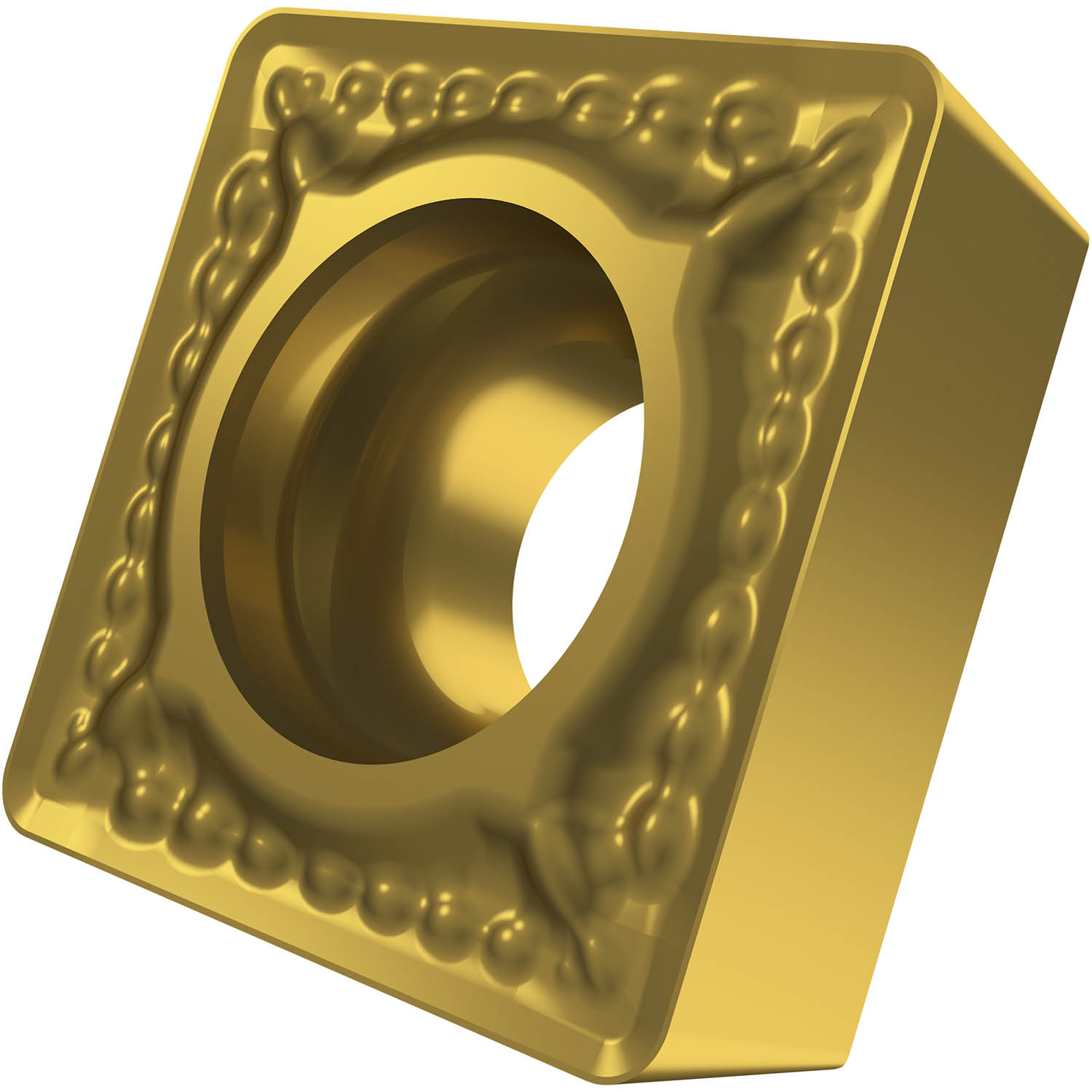

Drilling insert to fit the peripheral pocket of PRAMET 80.D indexable drills within a diameter range from 28 up to 34mm, D8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P35 and M15-M30 with SD geometry for machining of steel and stainless-steel.
Product Specifications
| EDP Number | 6920789 |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.5 mm |
| Fixing Hole Diameter (Inch) | 0.177" |
| Cutting Edge Length (mm) | 9.525 mm |
| Cutting Edge Length (Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.525 mm |
| Inscribed Circle Diameter (Inch) | 0.375" |
| Insert Thickness (mm) | 3.97 mm |
| Insert Thickness (Inch) | 0.156" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | PVD |
| Coating | D8330 |
| Surface Color | Gold |
