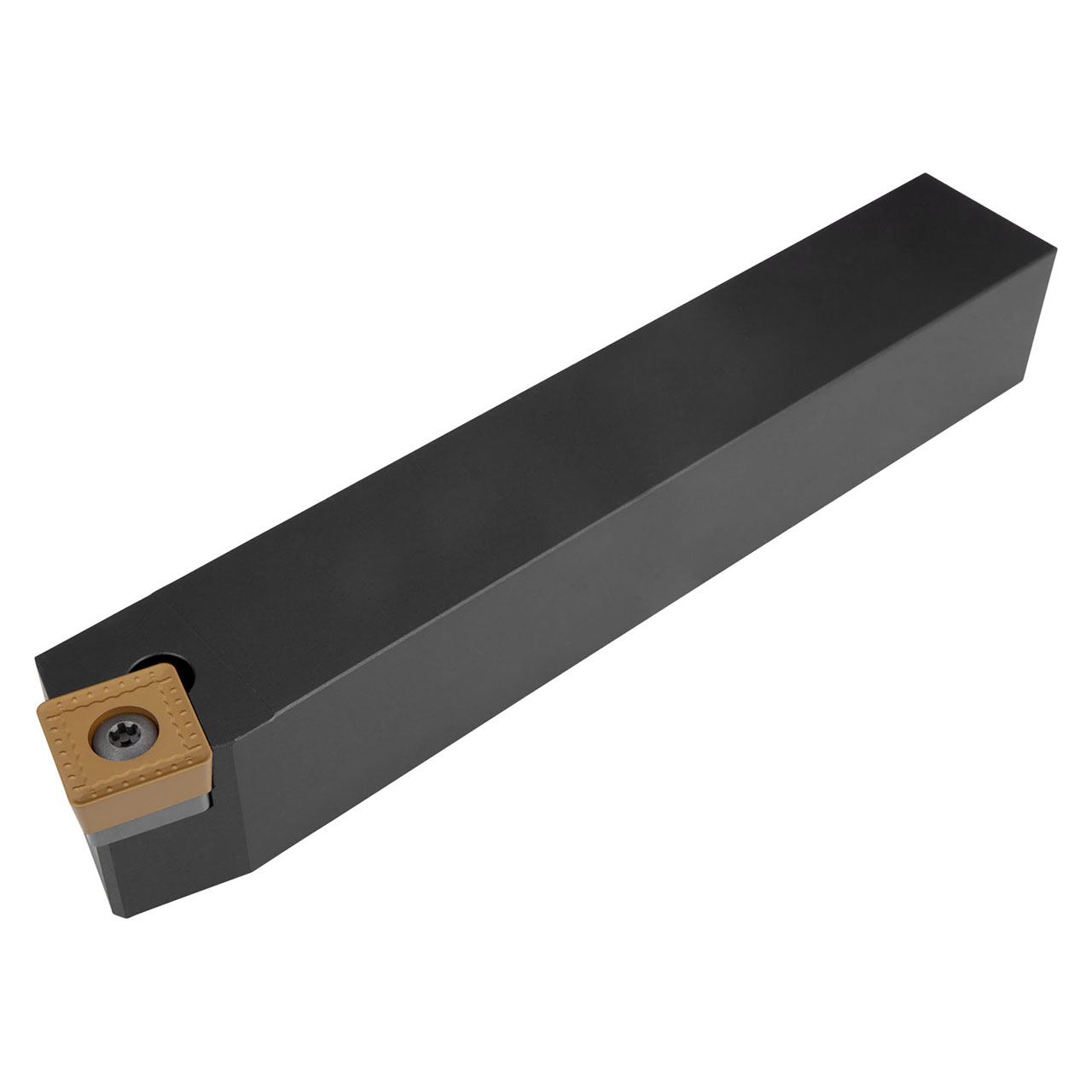

Screw clamp turning tool for holding a square positive insert with an inscribed circle diameter of 25.4 mm, 9.52 mm thick (ISO designation SC.. 2509.. ), right hand 75° side cutting with straight shank, 40 mm tool height x 40 mm width x 250 mm long for taper turning and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6757890 |
| Functional Height (mm) | 40 mm |
| Functional Width (mm) | |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 40 mm |
| Shank Width (mm) | 40 mm |
| Functional Length (mm) | 250 mm |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
1-37/64"
Shank Width (Decimal Inch):
1.5700"
Shank Width (mm):
40mm
Shank Height (Inch):
1-37/64"
Shank Height (Decimal Inch):
1.5700"
Shank Height (mm):
40mm
interval quantity:
1
