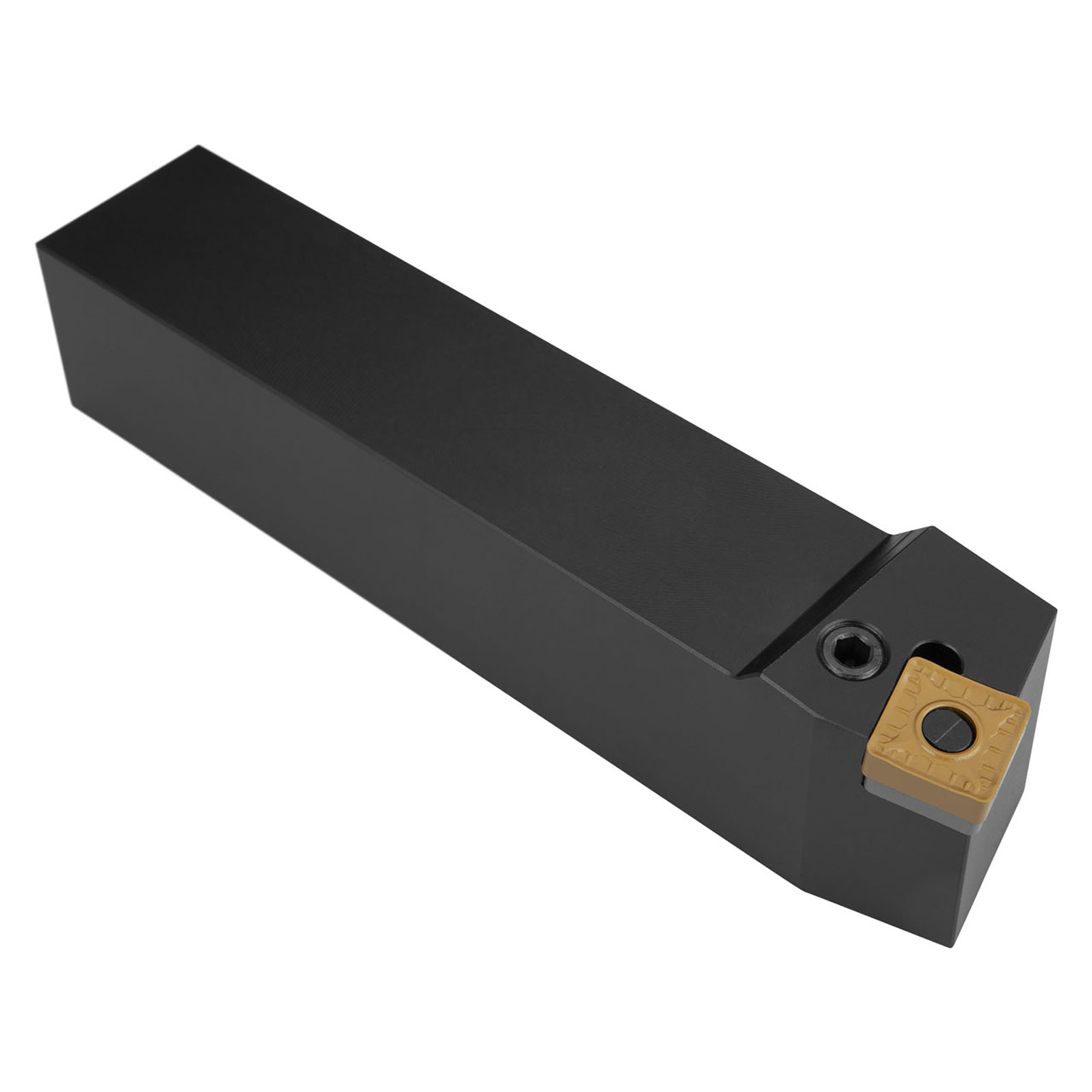

Lever lock turning tool for holding a square negative insert with an inscribed circle diameter of 25.4 mm, 7.94 mm thick (ISO designation SN.. 2507.. ), left hand 75 Degree side cutting with straight shank, 40 mm tool height x 40 mm width x 250 mm long for taper turning and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6757239 |
| Functional Height (mm) | 40 mm |
| Functional Width (mm) | |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 40 mm |
| Shank Width (mm) | 40 mm |
| Functional Length (mm) | 250 mm |
| Head Length (mm) | 50 mm |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
