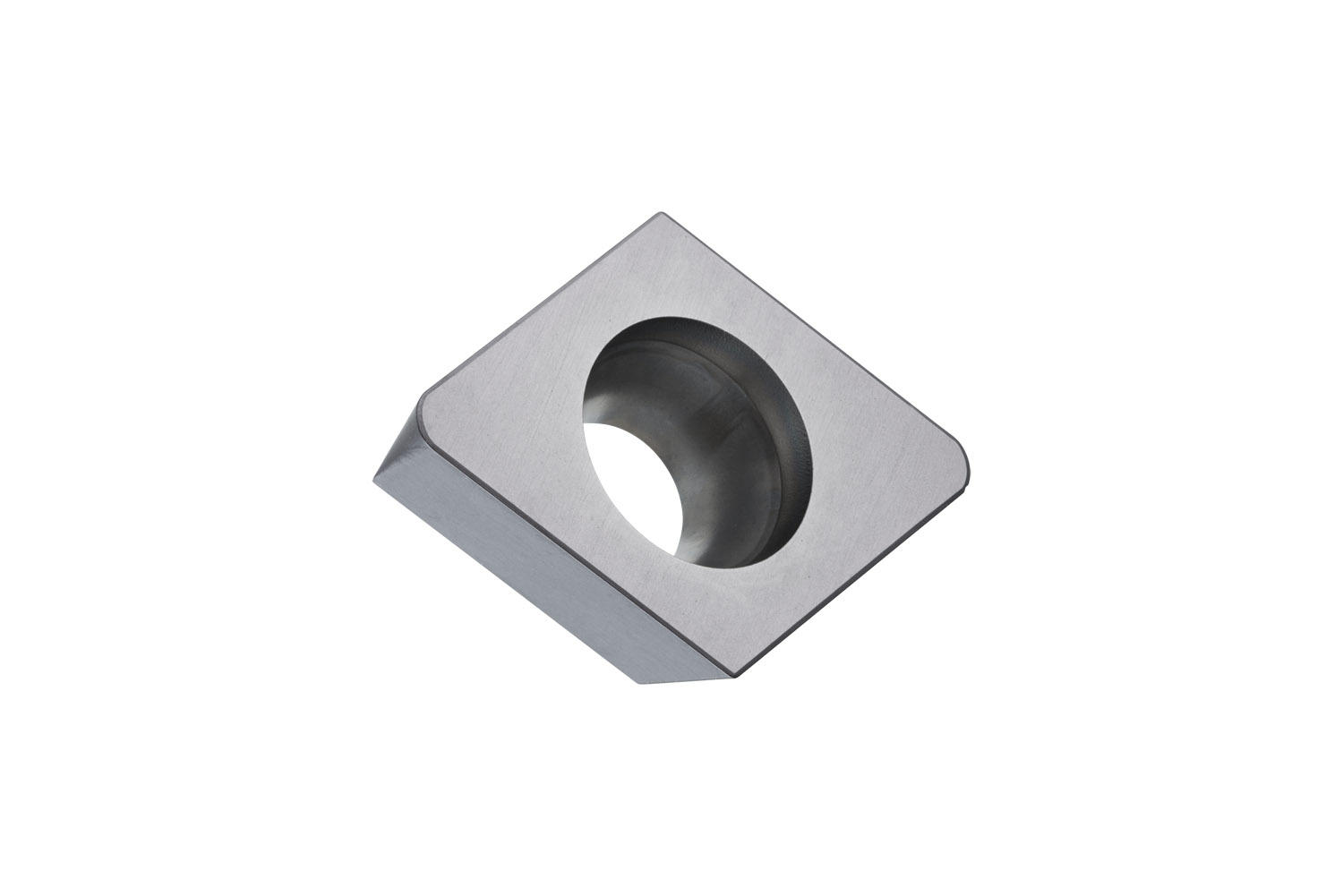

Pramet XDHW 10T310SN:M8310 | 0.156" Diameter x 0.156" Thickness Milling Insert

$12.52
Brand:
Pramet
interval quantity:
10
SKU:
23150397
Weight:
0.01 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Single-sided milling insert XDHW 10T3 with a plane rake surface, 70 Degree rhomboid for a maximum depth of cut of 1.0 mm, with 1.0 mm corner radius, an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges and facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K01-K10 and H05-H15 for machining of cast-iron and hardened material.

Product Specifications
EDP Number6756269
Maximum Depth of Cut (mm)1 mm
Max Depth of Cut (Inch)0.039"
Coating Property1
Fixing Hole Diameter (mm)3.95 mm
Fixing Hole Diameter (Inch)0.156"
Cutting Edge Length (mm)10.6 mm
Cutting Edge Length (Inch)0.417"
Inscribed Circle Diameter (mm)10 mm
Inscribed Circle Diameter (Inch)0.394"
Insert Thickness (mm)3.97 mm
Insert Thickness (Inch)0.156"
Corner Radius (mm)1 mm
Corner Radius (Inch)0.039"
Coating ProcessPVD
CoatingM8310
Surface ColorPurple - Black
Min Depth of Cut (mm)0.2 mm
Min Depth of Cut (Inch)0.008"
Country of originCzech Republic
