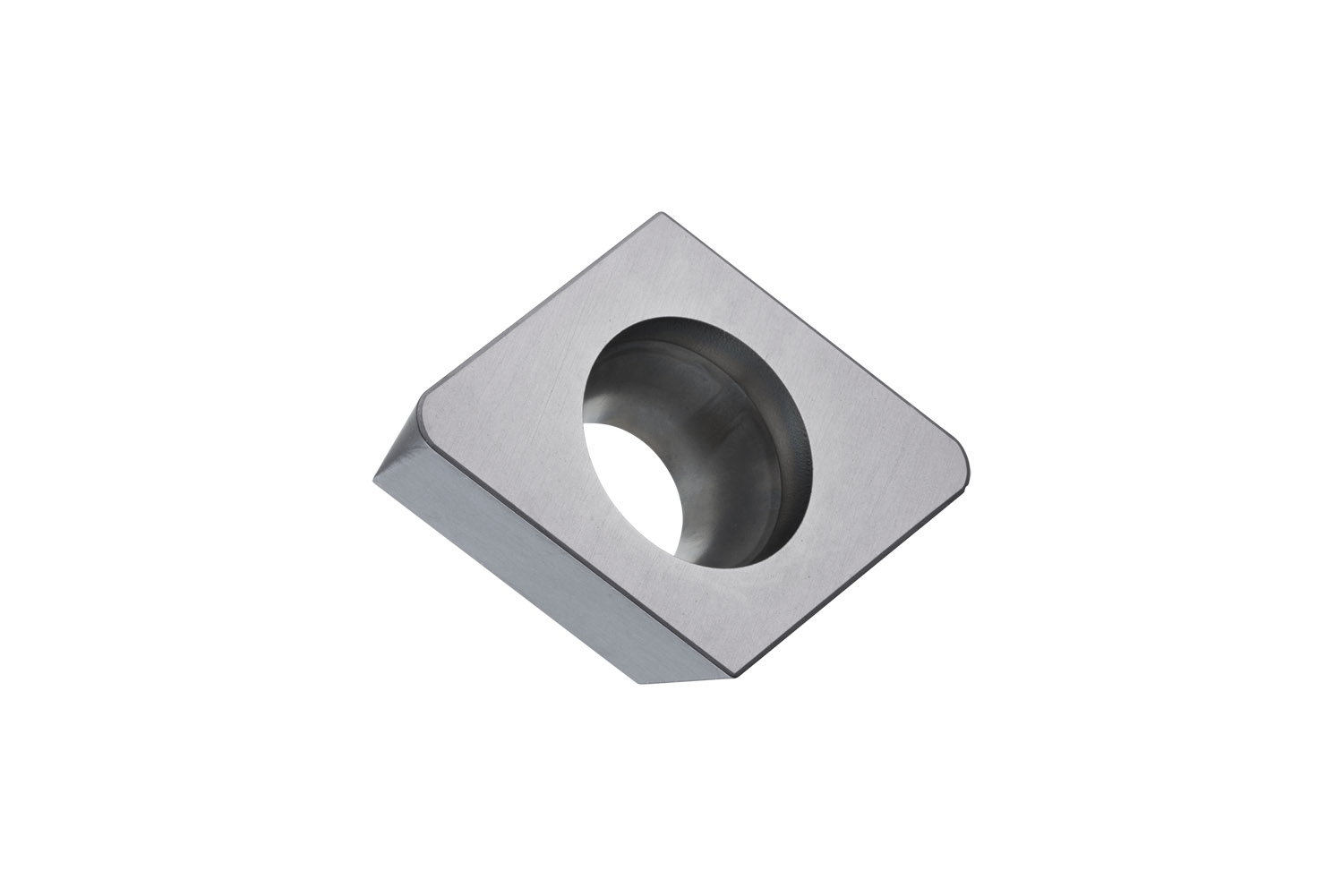

Single-sided milling insert XDHW 10T3 with a plane rake surface, 70 Degree rhomboid for a maximum depth of cut of 1.0 mm, with 1.0 mm corner radius, an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges and facet, M8325 PVD coated WC-(Ti, Ta, Nb)C-Co carbide.
Product Specifications
| EDP Number | 6756013 |
| Maximum Depth of Cut (mm) | 1 mm |
| Max Depth of Cut (Inch) | 0.039" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 3.95 mm |
| Fixing Hole Diameter (Inch) | 0.156" |
| Cutting Edge Length (mm) | 10.6 mm |
| Cutting Edge Length (Inch) | 0.417" |
| Inscribed Circle Diameter (mm) | 10 mm |
| Inscribed Circle Diameter (Inch) | 0.394" |
| Insert Thickness (mm) | 3.97 mm |
| Insert Thickness (Inch) | 0.156" |
| Corner Radius (mm) | 1 mm |
| Corner Radius (Inch) | 0.039" |
| Coating Process | PVD |
| Coating | M8325 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.2 mm |
| Min Depth of Cut (Inch) | 0.008" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Pramet
Finish/Coating:
PVD
Length (Decimal Inch):
0.4170"
Length (mm):
10.60mm
Inscribed Circle (Decimal Inch):
0.3940"
Inscribed Circle (mm):
10.00mm
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.97mm
interval quantity:
10
