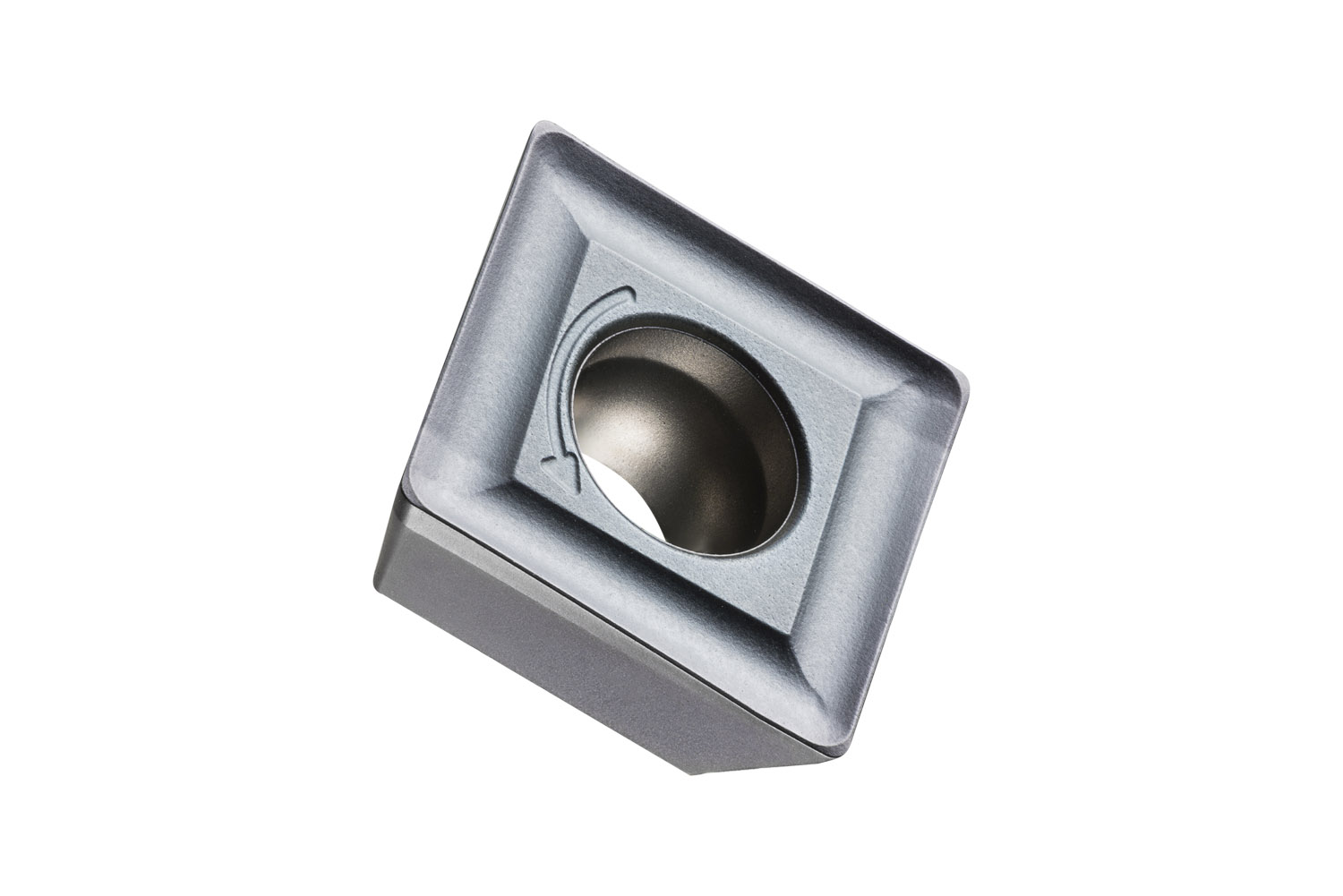

Single-sided milling insert SOMT 09T3 with chip-breakers, square for a maximum depth of cut of 8.0 mm, with 0.4 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and MI geometry, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range K10-K25 for machining of cast-iron with chamfer mills N-SSO09 or shoulder mills SSO09.
Product Specifications
| EDP Number | 6753418 |
| Maximum Depth of Cut (mm) | 8 mm |
| Max Depth of Cut (Inch) | 0.315" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 3.5 mm |
| Fixing Hole Diameter (Inch) | 0.138" |
| Cutting Edge Length (mm) | 9.55 mm |
| Cutting Edge Length (Inch) | 0.376" |
| Inscribed Circle Diameter (mm) | 9.55 mm |
| Inscribed Circle Diameter (Inch) | 0.376" |
| Insert Thickness (mm) | 3.97 mm |
| Insert Thickness (Inch) | 0.156" |
| Corner Radius (mm) | 0.4 mm |
| Corner Radius (Inch) | 0.016" |
| Coating Process | PVD |
| Coating | 8215 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
| Country of origin | Czech Republic |
