Expanding Plugs
Use to plug the end of a drilled manifold passage. Driving the ball into place after insertion provides leak-free metal-to-metal sealing.

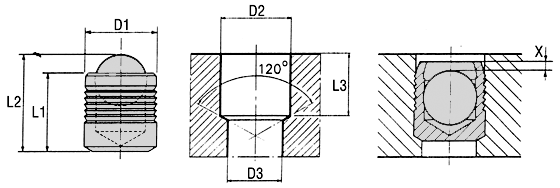

Application Information
Inserted
Finished Installation
Installation
Drill the end of the fluid passage to D2 diameter, L3 deep. Insert Expanding Plug to bottom of drill point. Do not use sealing compound or teflon tape.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Steel | - | - | Yes | Yes |
Parts Specification
| Size | Max. Operating Pressure (PSI) | D1 | D2+.0041-.000 | D3 Max. | L1 | L2 | L3 Min. | X +/-0.008 | Installation Tool For Expanding Plug |
| 1 Small | 7500 PSI | 6mm | 0.236 | 0.208 | 0.256 | 0.339 | 0.248 | 0.016 | CLR-HT-MBM-060 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Roemheld
