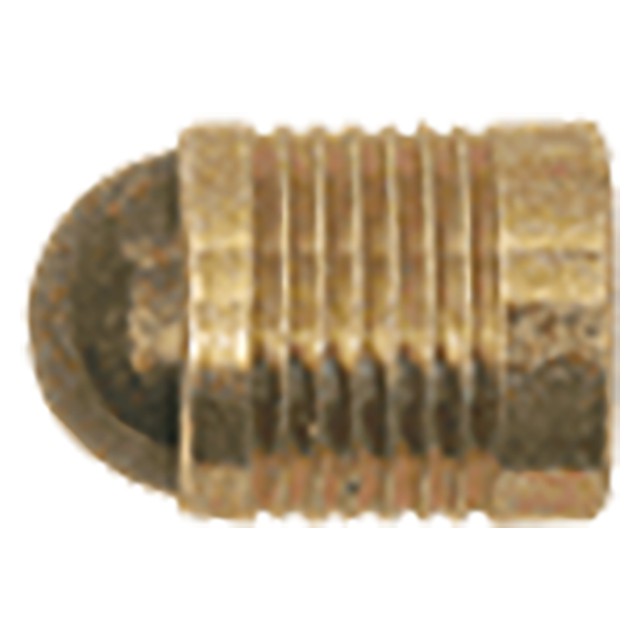

Use to plug the end of a drilled manifold passage. Driving the ball into place after insertion provides leak-free metal-to-metal sealing.
Inserted
Finished Installation
Drill the end of the fluid passage to D2 diameter, L3 deep. Insert Expanding Plug to bottom of drill point. Do not use sealing compound or teflon tape.
| Material | Heat Treat | Finish | DFARS | RoHS |
| Steel | - | - | Yes | Yes |
| Size | Max. Operating Pressure (PSI) | D1 | D2+.0041-.000 | D3 Max. | L1 | L2 | L3 Min. | X +/-0.008 | Installation Tool For Expanding Plug |
| 2 Medium | 7500 PSI | 8mm | 0.315 | 0.291 | 0.335 | 0.461 | 0.327 | 0.012 | CLR-HT-MBM-080 |
