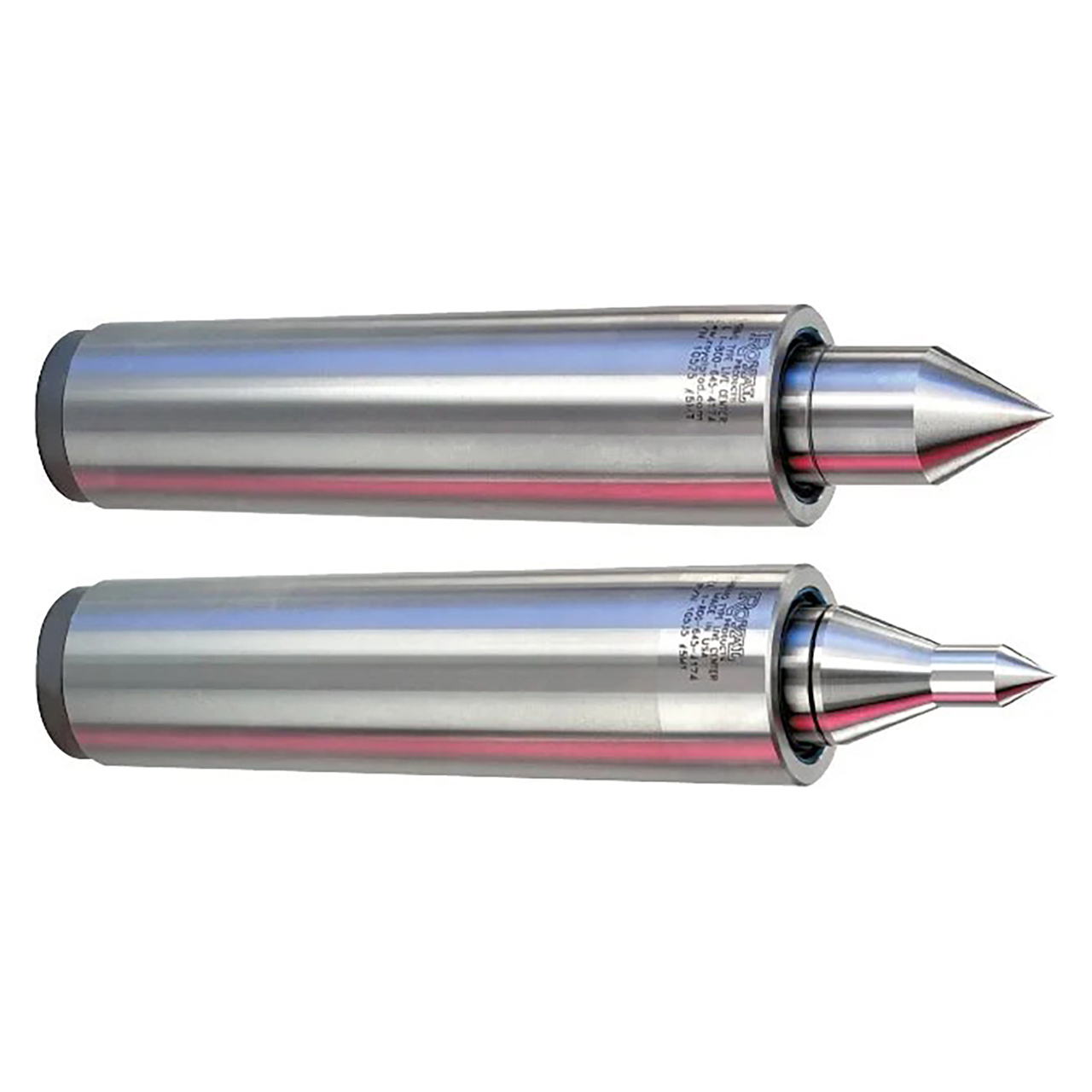

- Unique spring-loaded point compensates for workpiece thermal expansion
- Low-profile design provides outstanding tool clearance
- Can be used in the turret of sub-spindle machines to overcome a lack of hydraulic compensation
Product Specifications
| Center Dimension A (Center Taper) | 5 MT |
| Center Dimension B (Inch) | 1.748 |
| Center Dimension F (Inch) | 2.00 |
| Weight of Workpiece (lbs.) | 2,340 |
| Center Dimension G (Inch) | 1.10 |
| Spring Travel (Inch) | 0.19 |
| Max Suggested RPM | 4,500 |
| Thrust Load (lbs.) | 785 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Royal Products
