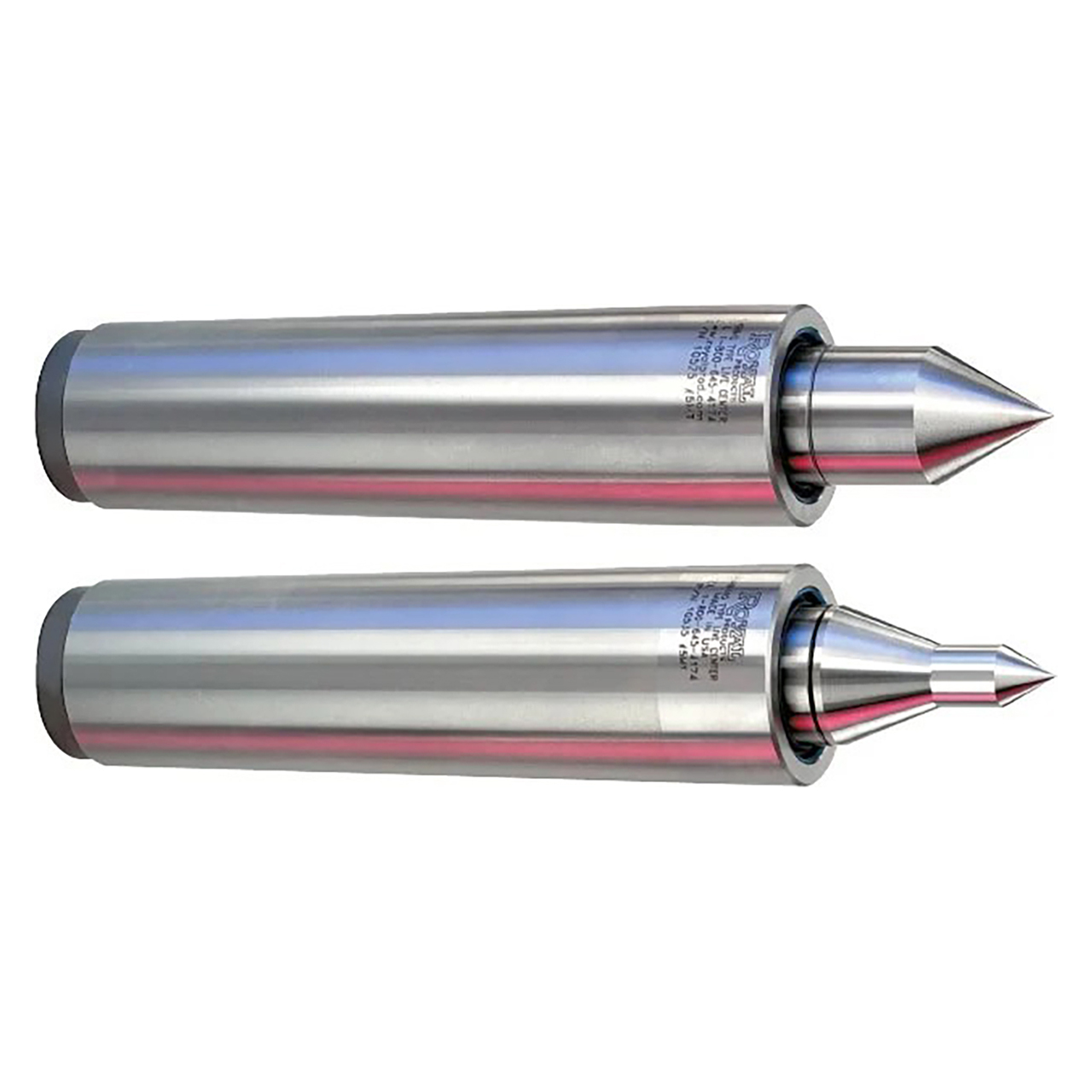

Royal Products 10524 | 4 MT Taper Standard Spring Type Live Center

SKU: 55003407 Weight: 1.50 LBS Minimum Purchase: 1 unit
UPC:
$1,355.00 $1,151.75
(You save $203.25)
Shipping: Calculated at Checkout

About This Item

  • Unique spring-loaded point compensates for workpiece thermal expansion
  • Low-profile design provides outstanding tool clearance
  • Can be used in the turret of sub-spindle machines to overcome a lack of hydraulic compensation

Product Specifications
Center Dimension A (Center Taper) 4 MT
Center Dimension B (Inch) 1.231
Center Dimension F (Inch) 1.38
Weight of Workpiece (lbs.) 1,400
Center Dimension G (Inch) 0.63
Spring Travel (Inch) 0.18
Max Suggested RPM 4,500
Thrust Load (lbs.) 435
