Description

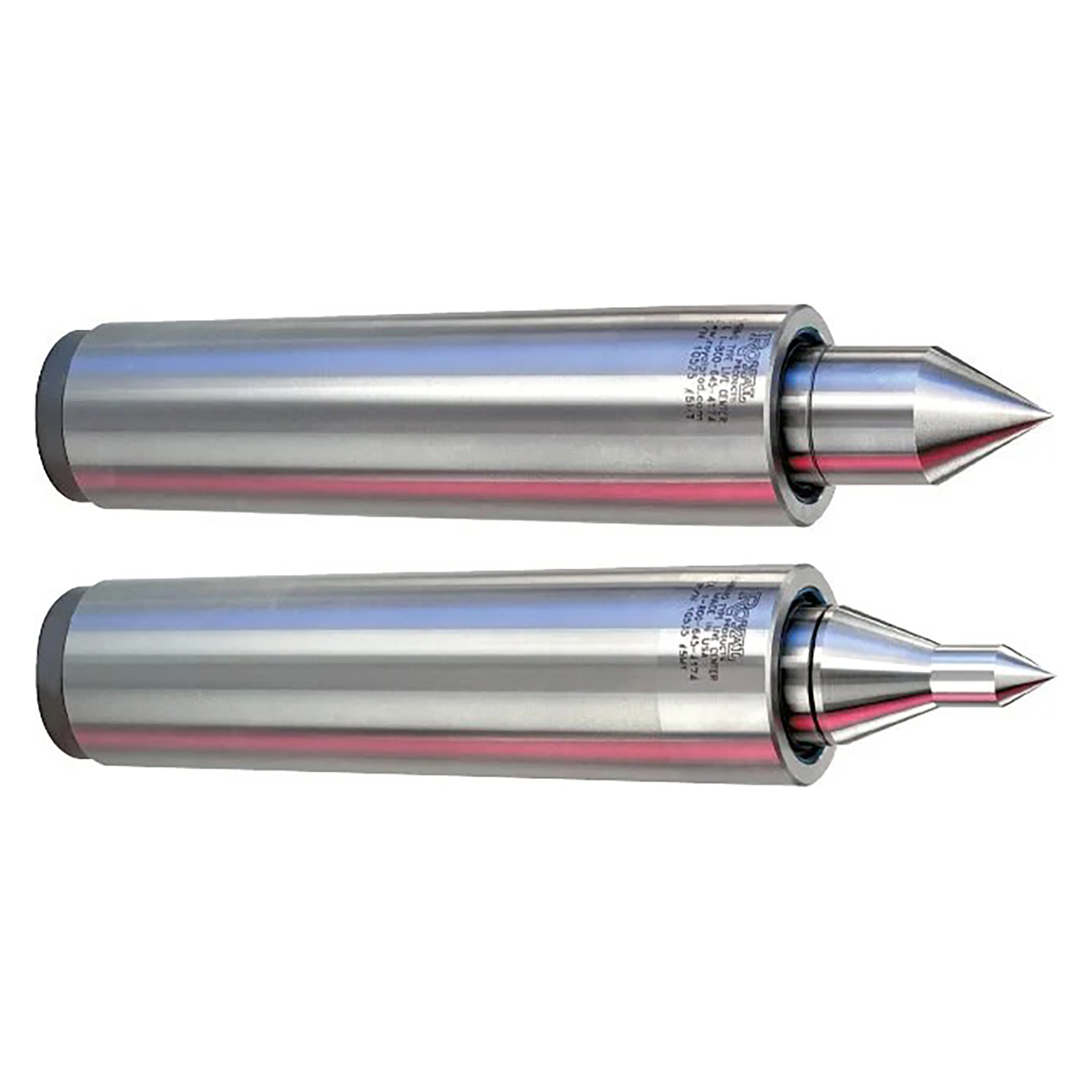

The Royal 10534 4 MT Spring-Type Live Center is built for precision support in demanding machining operations. As a 4 Morse Taper CNC live center, it installs securely into compatible spindle systems for stable workpiece support. The spring-loaded design helps maintain consistent contact as cutting conditions change during operation. This royal spring-loaded live center is well suited for applications where accuracy and repeatability are critical. With a 0.18 inch spring travel live center mechanism, it can absorb minor movement and help compensate for thermal growth. The 4500 RPM taper CNC live center rating supports high-speed production environments. Its 435 lb thrust load live center capacity makes it suitable for workpieces that require dependable axial support. The compact body dimensions support efficient machine setup without adding unnecessary bulk. This model is ideal for turning, finishing, and general support work in CNC shops. It also serves as a practical live center for sub-spindle CNC machines where controlled rotation is essential. The CNC spring-type live center for thermal expansion compensation helps maintain alignment during longer runs. That makes it valuable in operations where heat buildup can affect part consistency. The Royal 10534 helps reduce vibration and improves machining stability. It supports cleaner cuts and more accurate outcomes across repeated cycles. Designed for reliable performance, it is a strong choice for precision-driven production settings.
Product Features and Benefits
4 MT Taper Fit
The 4-MT Spring Type Live Center provides a secure taper connection for compatible CNC equipment.
Spring Travel Support
The 0.18 inch spring travel live center helps maintain pressure while adapting to changing machining conditions.
High-Speed Operation
The 4500 RPM taper CNC live center is rated for fast and dependable use in production environments.
Strong Axial Load Capacity
The 435 lbs thrust load live center delivers the support needed for stable turning and finishing work.
Thermal Compensation Design
The CNC spring-type live center for thermal expansion compensation helps preserve alignment during heat-intensive machining.
Product Specifications
| Center Dimension A (Center Taper) | 4 MT |
| Center Dimension B (Inch) | 1.23 |
| Center Dimension F (Inch) | 1.38 |
| Weight of Workpiece (lbs.) | 435 |
| Center Dimension G (Inch) | 0.63 |
| Center Dimension H (Inch) | 0.38 |
| Center Dimension I (Inch) | 0.70 |
| Spring Travel | 0.18 |
| Max Suggested RPM | 4,500 |
| Thrust Load (lbs.) | 435 |
Frequently Asked Questions
What is the Royal 10534 used for?
The Royal 10534 is used to support rotating workpieces during turning, finishing, and precision CNC machining.
What taper does this live center use?
This 4 morse taper CNC live center uses a 4 MT taper for compatible machine mounting.
What is the maximum suggested RPM?
The 4,500 RPM taper CNC live center is rated for a maximum suggested speed of 4,500 RPM.
How much thrust load can it handle?
This 435 lbs thrust load live center is made to support up to 435 lbs of axial load.
Why is spring travel important in this model?
The 0.18 inch spring travel live center helps absorb movement and maintain consistent workpiece contact.
