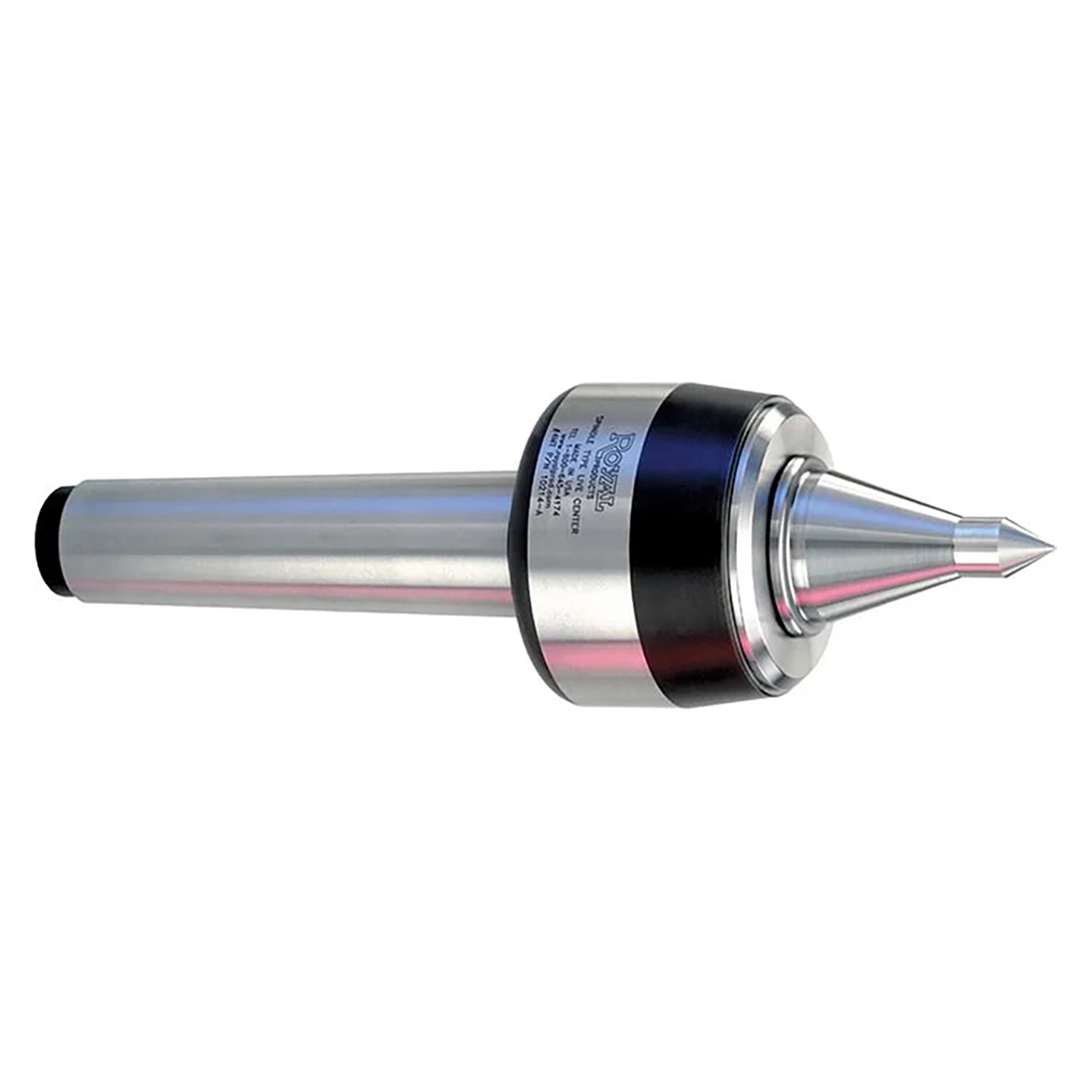

Royal Products 10213 | 3 MT Taper CNC Spindle Type Live Center

SKU: 55003390 Weight: 2.44 LBS Minimum Purchase: 1 unit
UPC:
$1,035.00 $879.75
(You save $155.25)
Shipping: Free Shipping

About This Item

  • Excellent heavy-duty live center designed to handle almost all manual and CNC turning jobs
  • Heavy-duty precision bearings provide exceptional radial and thrust load capacities
  • The thick, rigid point extends into the shank where it is supported by a large needle bearing for increased strength and vibration dampening
  • Exclusive Roto-Shield coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life
  • Body and point are hardened and ground for accuracy and durability

Product Specifications
Center Dimension A (Center Taper) 3 MT
Center Dimension B (Inch) 2.33
Center Dimension E (Inch) 1.750
Center Dimension F (Inch) 1.86
Center Dimension G (Inch) 1.00
Center Dimension H (Inch) 0.38
Center Dimension I (Inch) 0.63
Weight of Workpiece (lbs.) 740
Max Suggested RPM 5,000
Thrust Load (lbs.) 3,900
