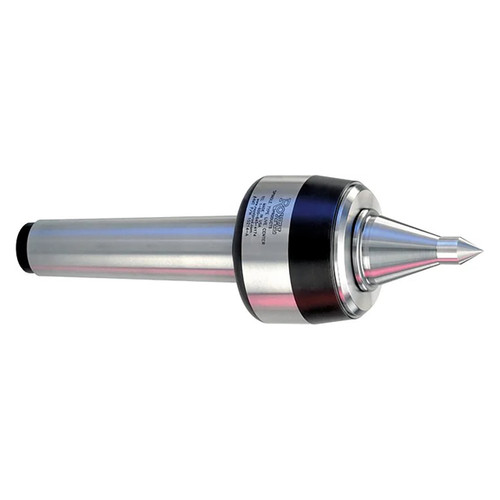

Royal Products 10215 | 5 MT Taper CNC Spindle Type Live Center

SKU: 55003480 Weight: 10.62 LBS Minimum Purchase: 1 unit
UPC:
$1,760.00 $1,496.00
(You save $264.00)
Shipping: Calculated at Checkout

About This Item

  • Excellent heavy-duty live center designed to handle almost all manual and CNC turning jobs
  • Heavy-duty precision bearings provide exceptional radial and thrust load capacities
  • The thick, rigid point extends into the shank where it is supported by a large needle bearing for increased strength and vibration dampening
  • Exclusive Roto-Shield coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life
  • Body and point are hardened and ground for accuracy and durability

Product Specifications
Center Dimension A (Center Taper) 5 MT
Center Dimension B (Inch) 3.45
Center Dimension E (Inch) 2.810
Weight of Workpiece (lbs.) 1,930
Center Dimension F (Inch) 2.58
Center Dimension G (Inch) 1.50
Center Dimension H (Inch) 0.50
Center Dimension I (Inch) 0.81
Max Suggested RPM 3,500
Thrust Load (lbs.) 5,700
