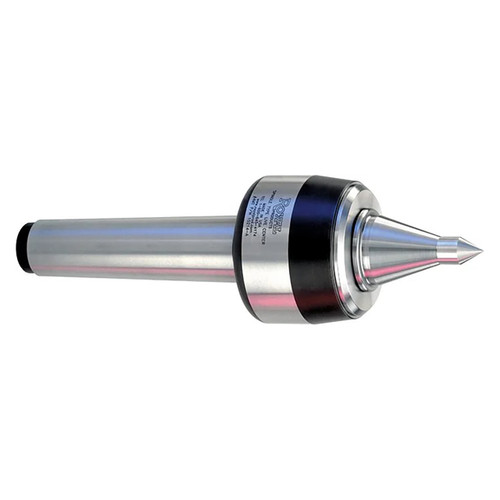

Royal Products 10214 | 4 MT Taper CNC Spindle Type Live Center

SKU: 55003533 Weight: 4.19 LBS Minimum Purchase: 1 unit
UPC:
$1,315.00 $1,117.75
(You save $197.25)
Shipping: Free Shipping

About This Item

  • Excellent heavy-duty live center designed to handle almost all manual and CNC turning jobs
  • Heavy-duty precision bearings provide exceptional radial and thrust load capacities
  • The thick, rigid point extends into the shank where it is supported by a large needle bearing for increased strength and vibration dampening
  • Exclusive Roto-Shield coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life
  • Body and point are hardened and ground for accuracy and durability

Product Specifications
Center Dimension A (Center Taper) 4 MT
Center Dimension B (Inch) 2.68
Center Dimension E (Inch) 1.980
Weight of Workpiece (lbs.) 1,120
Center Dimension F (Inch) 2.18
Center Dimension G (Inch) 1.25
Center Dimension H (Inch) 0.50
Center Dimension I (Inch) 0.81
Max Suggested RPM 4,500
Thrust Load (lbs.) 4,050
