Product Specifications
| Manufacturer Part Number | 02770505 |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Protruding Length (Decimal Inch) | 3.941" |
| Protruding Length (mm) | 100.11mm |
| Shank Length (Decimal Inch) | 4.516" |
| Shank Length (mm) | 114.70mm |
| Overall Length (Decimal Inch) | 5.910" |
| Overall Length (mm) | 150.11mm |
| Maximum Depth of Cut (Decimal Inch) | 0.158" |
| Maximum Depth of Cut (mm) | 4.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -18.5 Degree |
| Rake Orthogonal Angle (Degree) | -18.5 Degree |
| Maximum Rotational Speed (rpm) | 29400 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | XNEX0403 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Steel |
| Shank Type | Cylindrical |

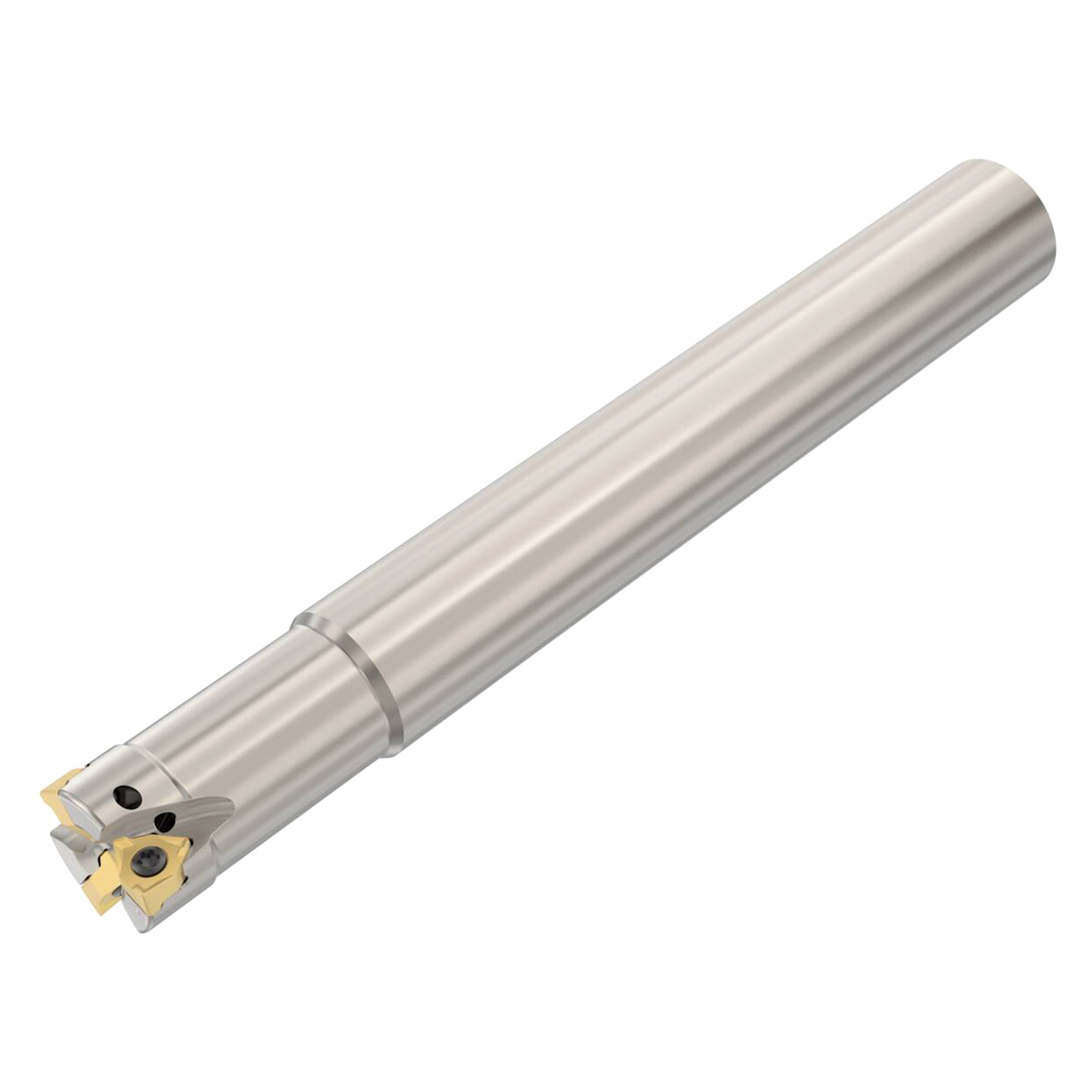

| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
19-1/20"
Cutting Diameter (Decimal Inch):
0.7500"
Cutting Diameter (mm):
19.05mm
Shank Type:
Cylindrical
Overall Length (Inch):
150-1/9"
Overall Length (Decimal Inch):
5.9098"
Overall Length (mm):
150.11mm
interval quantity:
1
