| Manufacturer Part Number | 02694898 |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.280" |
| Minimum Helical Interpolation Hole Diameter (mm) | 32.50mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.457" |
| Maximum Helical Interpolation Hole Diameter (mm) | 37.00mm |
| Protruding Length (Decimal Inch) | 4.016" |
| Protruding Length (mm) | 102.00mm |
| Shank Length (Decimal Inch) | 5.118" |
| Shank Length (mm) | 130.00mm |
| Overall Length (Decimal Inch) | 5.906" |
| Overall Length (mm) | 150.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.197" |
| Maximum Depth of Cut (mm) | 5.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -6.7 Degree |
| Rake Orthogonal Angle (Degree) | -6.7 Degree |
| Maximum Ramping Angle (Degree) | 2 Degree |
| Maximum Rotational Speed (rpm) | 44000 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | XO.X0602 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Steel |
| Shank Type | Cylindrical |

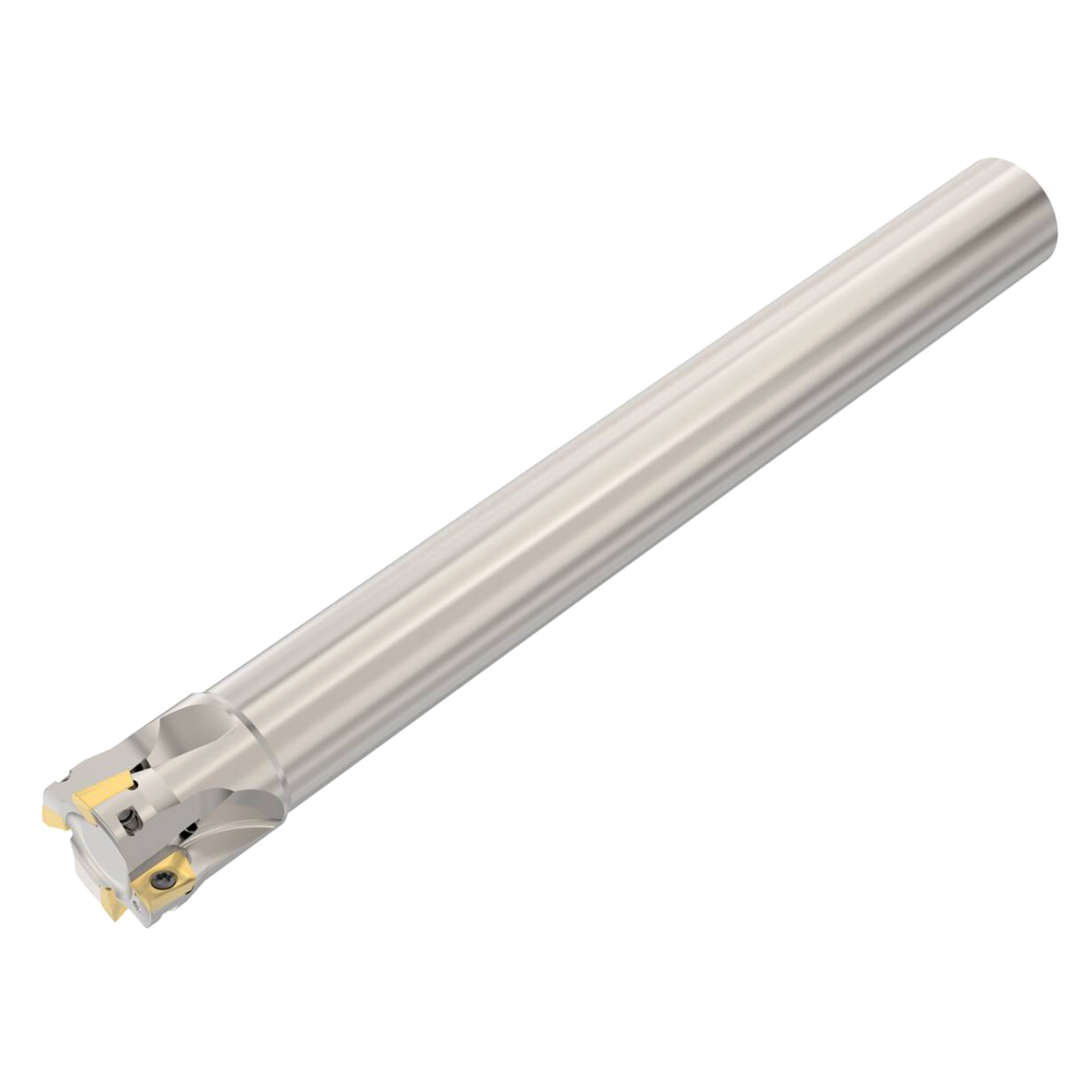

| Product Type | Indexable Square-Shoulder End Mill |
