Product Specifications

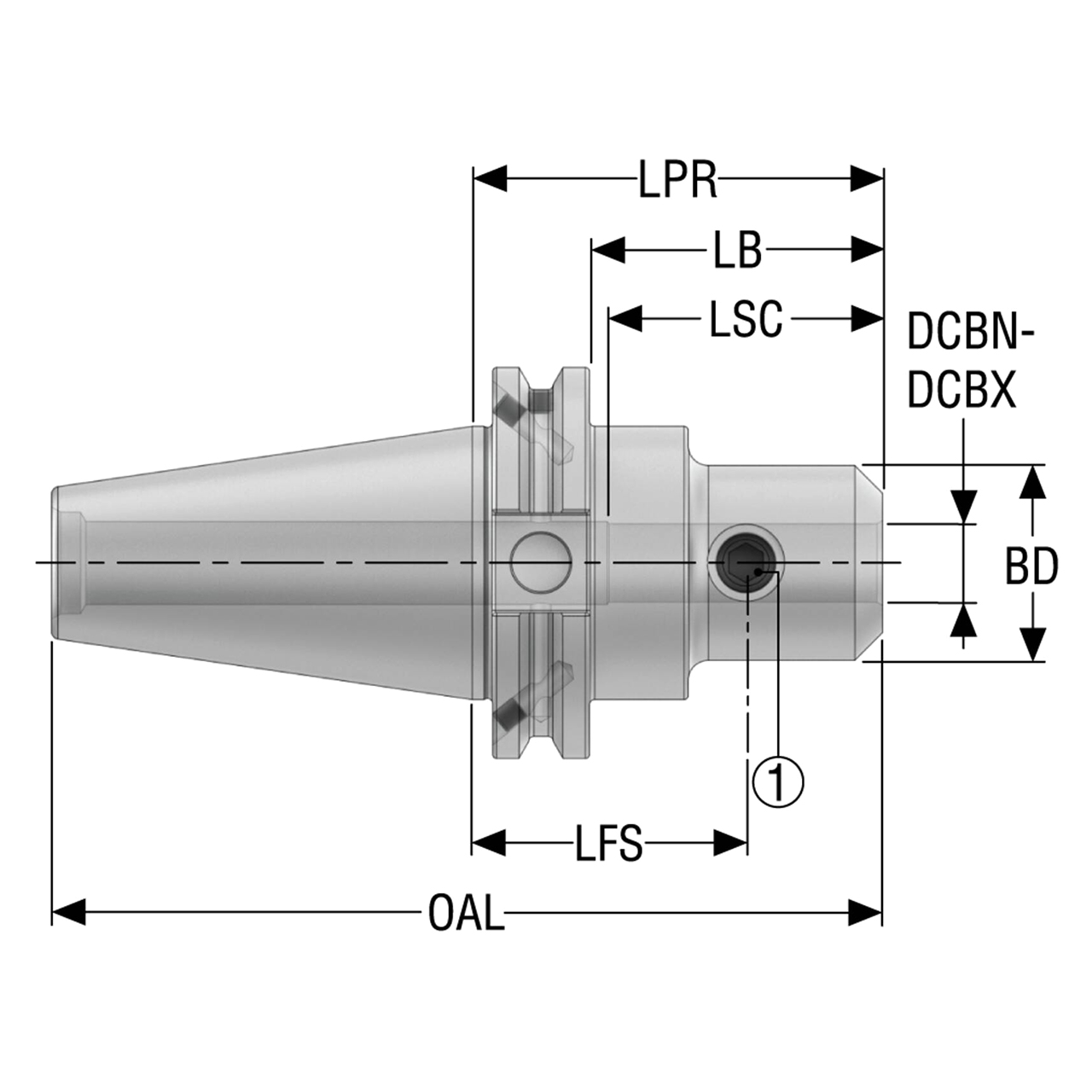

| Manufacturer Part Number | 03201516 |
| Body Diameter (Decimal Inch) | 1.250" |
| Body Diameter (mm) | 31.75mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.500" |
| Minimum Connection Bore Diameter (mm) | 12.70mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.500" |
| Maximum Connection Bore Diameter (mm) | 12.70mm |
| Body Length (Decimal Inch) | 1.875" |
| Body Length (mm) | 47.63mm |
| Functional Length Secondary (Decimal Inch) | 1.775" |
| Functional Length Secondary (mm) | 45.09mm |
| Protruding Length (Decimal Inch) | 2.620" |
| Protruding Length (mm) | 66.55mm |
| Clamping Length (Decimal Inch) | 1.750" |
| Clamping Length (mm) | 44.45mm |
| Overall Length (Decimal Inch) | 6.625" |
| Overall Length (mm) | 168.28mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 12000 rpm |
| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-1/4"
Body Diameter (Decimal Inch):
1.2500"
Body Diameter (mm):
31.75mm
Overall Length (Inch):
6-5/8"
Overall Length (Decimal Inch):
6.6250"
Overall Length (mm):
168.28mm
interval quantity:
1
