| Manufacturer Part Number | 03201530 |
| Body Diameter (Decimal Inch) | 2.750" |
| Body Diameter (mm) | 69.85mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.500" |
| Minimum Connection Bore Diameter (mm) | 38.10mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.500" |
| Maximum Connection Bore Diameter (mm) | 38.10mm |
| Body Length (Decimal Inch) | 1.870" |
| Body Length (mm) | 47.50mm |
| Functional Length Secondary (Decimal Inch) | 1.495" |
| Functional Length Secondary (mm) | 37.97mm |
| Protruding Length (Decimal Inch) | 2.620" |
| Protruding Length (mm) | 66.55mm |
| Clamping Length (Decimal Inch) | 3.000" |
| Clamping Length (mm) | 76.20mm |
| Overall Length (Decimal Inch) | 6.620" |
| Overall Length (mm) | 168.15mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 12000 rpm |

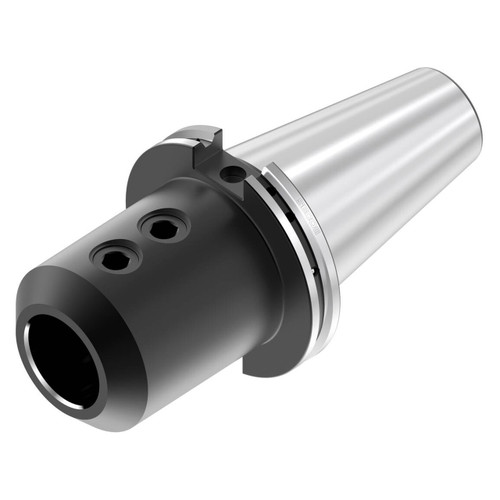

| Product Type | End Mill Holder |
