Product Specifications

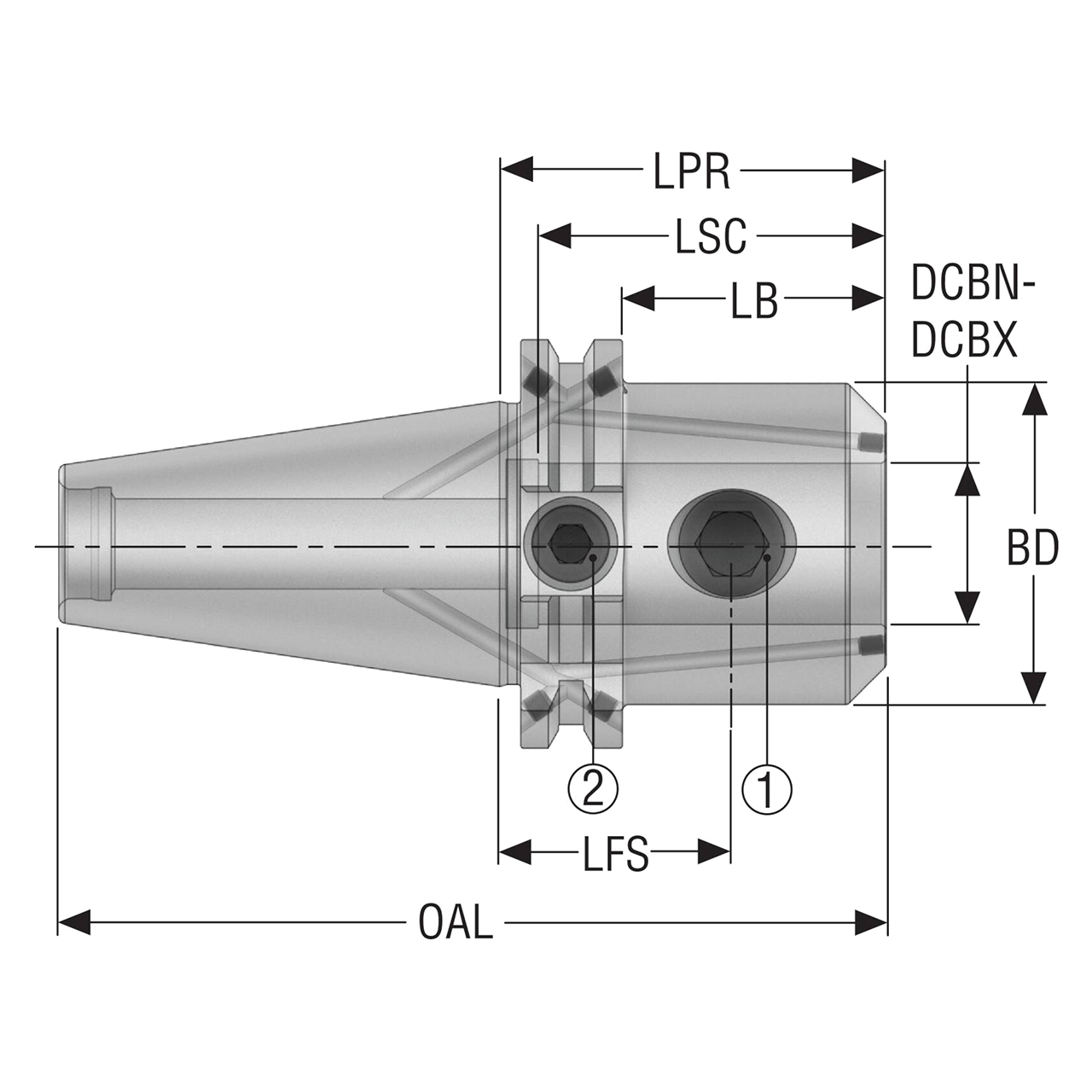

| Manufacturer Part Number | 03301718 |
| Body Diameter (Decimal Inch) | 2.835" |
| Body Diameter (mm) | 72.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.260" |
| Minimum Connection Bore Diameter (mm) | 32.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.260" |
| Maximum Connection Bore Diameter (mm) | 32.00mm |
| Thread Diameter Size 1 | M20x2 |
| Thread Diameter Size 2 | M14 |
| Body Length (Decimal Inch) | 1.610" |
| Body Length (mm) | 40.90mm |
| Functional Length Secondary (Decimal Inch) | 1.417" |
| Functional Length Secondary (mm) | 36.00mm |
| Protruding Length (Decimal Inch) | 2.362" |
| Protruding Length (mm) | 60.00mm |
| Clamping Length (Decimal Inch) | 2.284" |
| Clamping Length (mm) | 58.00mm |
| Overall Length (Decimal Inch) | 6.368" |
| Overall Length (mm) | 161.75mm |
| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
2-81/97"
Body Diameter (Decimal Inch):
2.8350"
Body Diameter (mm):
72.00mm
Overall Length (Inch):
6-7/19"
Overall Length (Decimal Inch):
6.3680"
Overall Length (mm):
161.75mm
interval quantity:
1
