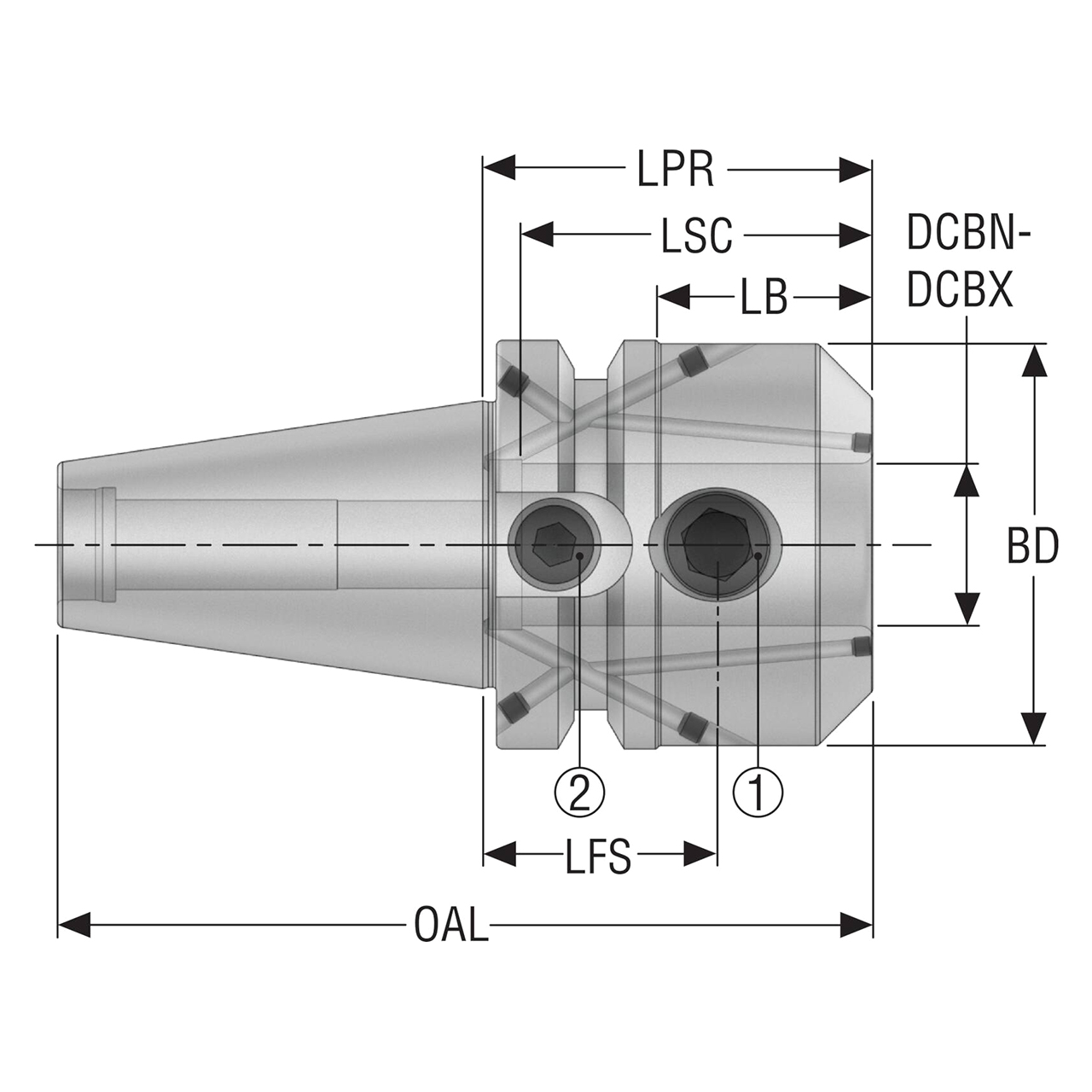

| Manufacturer Part Number | 10007220 |
| Body Diameter (Decimal Inch) | 2.441" |
| Body Diameter (mm) | 62.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.260" |
| Minimum Connection Bore Diameter (mm) | 32.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.260" |
| Maximum Connection Bore Diameter (mm) | 32.00mm |
| Thread Diameter Size 1 | M20x2 |
| Thread Diameter Size 2 | M14 |
| Body Length (Decimal Inch) | 1.496" |
| Body Length (mm) | 38.00mm |
| Functional Length Secondary (Decimal Inch) | 1.614" |
| Functional Length Secondary (mm) | 41.00mm |
| Protruding Length (Decimal Inch) | 2.559" |
| Protruding Length (mm) | 65.00mm |
| Clamping Length (Decimal Inch) | 2.284" |
| Clamping Length (mm) | 58.00mm |
| Overall Length (Decimal Inch) | 5.134" |
| Overall Length (mm) | 130.40mm |
| Product Type | End Mill Holder |
