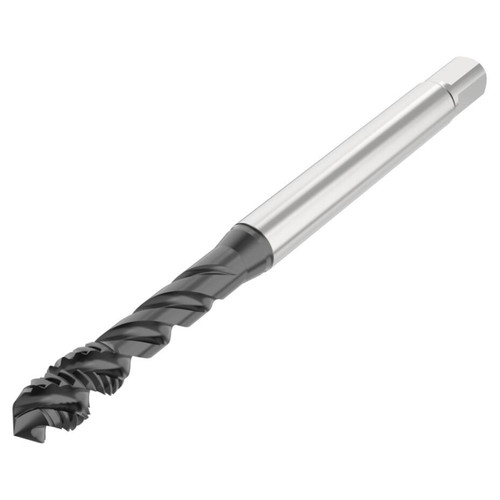

Seco Tools 10139073 | T34-R45H09C03-6-40-22R UNF6-40 Thread Size x 0.138" Diameter x 0.158" Shank x 2.260" OAL 45 Degree Helix Angle 3 Flute TiAIN+WC/C Coated HSS-E-PM Spiral Flute Tap

$86.80 $59.89
(You save $26.91)
Brand:
Seco Tools
Thread Size:
UNF6-40
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
TiAIN+WC/C
Overall Length (Inch):
2-13/50"
Overall Length (Decimal Inch):
2.2600"
Overall Length (mm):
57.40mm
interval quantity:
1
SKU:
17993953
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10139073 | T34-R45H09C03-6-40-22R UNF6-40 Thread Size x 0.138" Diameter x 0.158" Shank x 2.260" OAL 45 Degree Helix Angle 3 Flute TiAIN+WC/C Coated HSS-E-PM Spiral Flute Tap

Product Specifications
Manufacturer Part Number10139073
Thread Diameter (Decimal Inch)0.138"
Thread Diameter (mm)3.51mm
Threading Chamfer Length (Decimal Inch)0.063"
Threading Chamfer Length (mm)1.59mm
Tap Chamfer Length (Decimal Inch)0.063"
Tap Chamfer Length (mm)1.59mm
Connection Diameter Machine Side (Decimal Inch)0.158"
Connection Diameter Machine Side (mm)4.00mm
Shank Diameter (Decimal Inch)0.158"
Shank Diameter (mm)4.00mm
Functional Length (Decimal Inch)2.142"
Functional Length (mm)54.41mm
Usable Length (Decimal Inch)0.787"
Usable Length (mm)20.00mm
Overall Length (Decimal Inch)2.260"
Overall Length (mm)57.40mm
Thread Length (Decimal Inch)0.236"
Thread Length (mm)6.00mm
Thread Diameter SizeUNF6-40
Recommended Premachined Hole Diameter (Decimal Inch)0.116"
Recommended Premachined Hole Diameter (mm)2.95mm
Connection Size Code4.00X3.00
Connection Size Code Machine Side4.00X3.00
Maximum Premachined Hole Diameter (Decimal Inch)0.119"
Maximum Premachined Hole Diameter (mm)3.02mm
Minimum Threads Per Inch (mm)40.00mm
Maximum Threads Per Inch (mm)40.00mm
Flute Helix Angle (Degree)45 Degree
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class2BX
Threading Chamfer TypeC
Thread Form TypeUNF
Cutting DirectionRight Hand
Cutting Geometry TypeT34
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E-PM
CoatingTiAIN+WC/C
Product TypeSpiral Flute Tap
