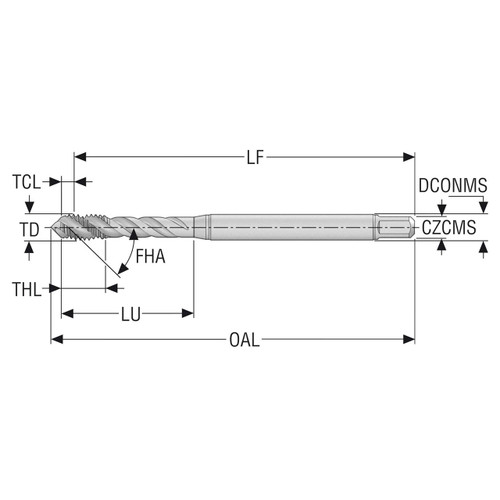

| Manufacturer Part Number | 10139056 |
| Thread Diameter (Decimal Inch) | 0.138" |
| Thread Diameter (mm) | 3.51mm |
| Threading Chamfer Length (Decimal Inch) | 0.077" |
| Threading Chamfer Length (mm) | 1.95mm |
| Tap Chamfer Length (Decimal Inch) | 0.077" |
| Tap Chamfer Length (mm) | 1.95mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.158" |
| Connection Diameter Machine Side (mm) | 4.00mm |
| Shank Diameter (Decimal Inch) | 0.158" |
| Shank Diameter (mm) | 4.00mm |
| Functional Length (Decimal Inch) | 2.128" |
| Functional Length (mm) | 54.05mm |
| Usable Length (Decimal Inch) | 0.787" |
| Usable Length (mm) | 20.00mm |
| Overall Length (Decimal Inch) | 2.260" |
| Overall Length (mm) | 57.40mm |
| Thread Length (Decimal Inch) | 0.236" |
| Thread Length (mm) | 6.00mm |
| Thread Diameter Size | UNC6-32 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.112" |
| Recommended Premachined Hole Diameter (mm) | 2.85mm |
| Connection Size Code | 4.00X3.00 |
| Connection Size Code Machine Side | 4.00X3.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.114" |
| Maximum Premachined Hole Diameter (mm) | 2.90mm |
| Minimum Threads Per Inch (mm) | 32.00mm |
| Maximum Threads Per Inch (mm) | 32.00mm |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2BX |
| Threading Chamfer Type | C |
| Thread Form Type | UNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |
| Product Type | Spiral Flute Tap |
