Features

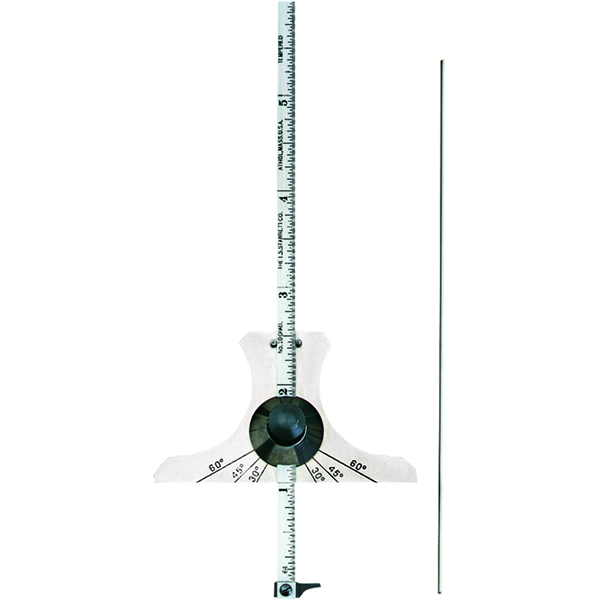

- The head is graduated both left and right to 30, 45, and 60 degrees
- Head is made of hardened steel, ground, and nicely polished - 2-5/8" (66mm) long and 1/8" (3mm) wide
- The center of the head is recessed so that the tool will lay fl at to permit more accurate measurements
- A tempered rule that has been accurately machined divided, is smoothly fitted to the head and can be locked in position by a knurled nut
- Includes hook rule and an extra 6" (150mm) long rod
Product Specifications
| Range (in) | 0-6" |
| Graduations (in) | 32nds, 64ths |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Type:
Combination Steel Rule Depth/Angle Gage
Minimum Measurement (Inch):
0"
Minimum Measurement (Decimal Inch):
0.0000"
Maximum Measurement (Inch):
6"
Maximum Measurement (Decimal Inch):
6.0000"
Rule Length (Inch):
6"
Rule Length (Decimal Inch):
6.0000"
Rule Length (mm):
150mm
Base Length (Inch):
2-5/8"
Base Length (Decimal Inch):
2.6250"
Base Length (mm):
67mm
Material:
Hardened Steel
Graduation (Inch):
1/32, 1/64"
Graduation (Decimal Inch):
0.0313, 0.0156"
Ships:
From Manufacturer
