Features

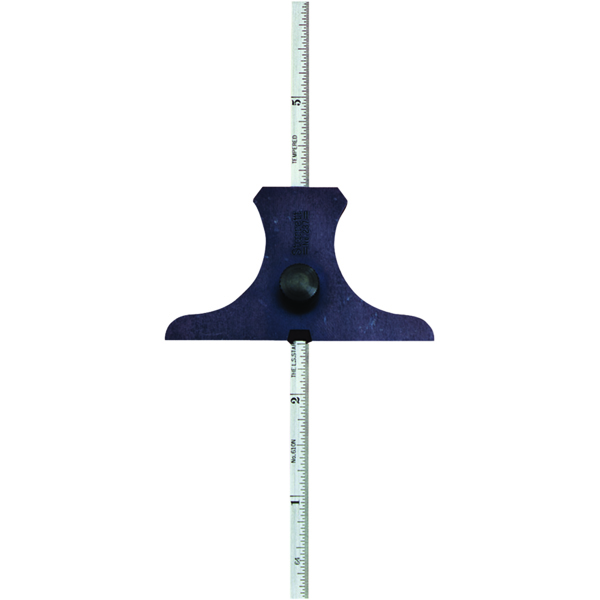

- Gage consists of a nicely finished, hardened steel head and an accurate, machine divided, tempered steel rule
- Rules are either 610N (6 inch) or 635N (150mm) models
- Gage can be smoothly adjusted to the required measurement and then locked into position by a knurled nut
- Base is cut out on one side, adjacent to the rule, permitting easier readings and more accurate measurements
- 6" hook rule also available, permitting easier readings from the edge of a workplace to the edges of the slots, and shoulders
Product Specifications
| Range (in) | 0-6" |
| Graduations (in) | 32nds, 64ths |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Type:
Rule Depth Gage
Minimum Measurement (Inch):
0"
Minimum Measurement (Decimal Inch):
0.0000"
Maximum Measurement (Inch):
6"
Maximum Measurement (Decimal Inch):
6.0000"
Rule Length (Inch):
6"
Rule Length (Decimal Inch):
6.0000"
Rule Length (mm):
150mm
Base Length (Inch):
2-5/8"
Base Length (Decimal Inch):
2.6250"
Base Length (mm):
67mm
Material:
Hardened Steel
Finish/Coating:
Brushed Steel
Graduation (Inch):
1/32, 1/64"
Graduation (Decimal Inch):
0.0313, 0.0156"
Ships:
From Manufacturer
