Product Specifications

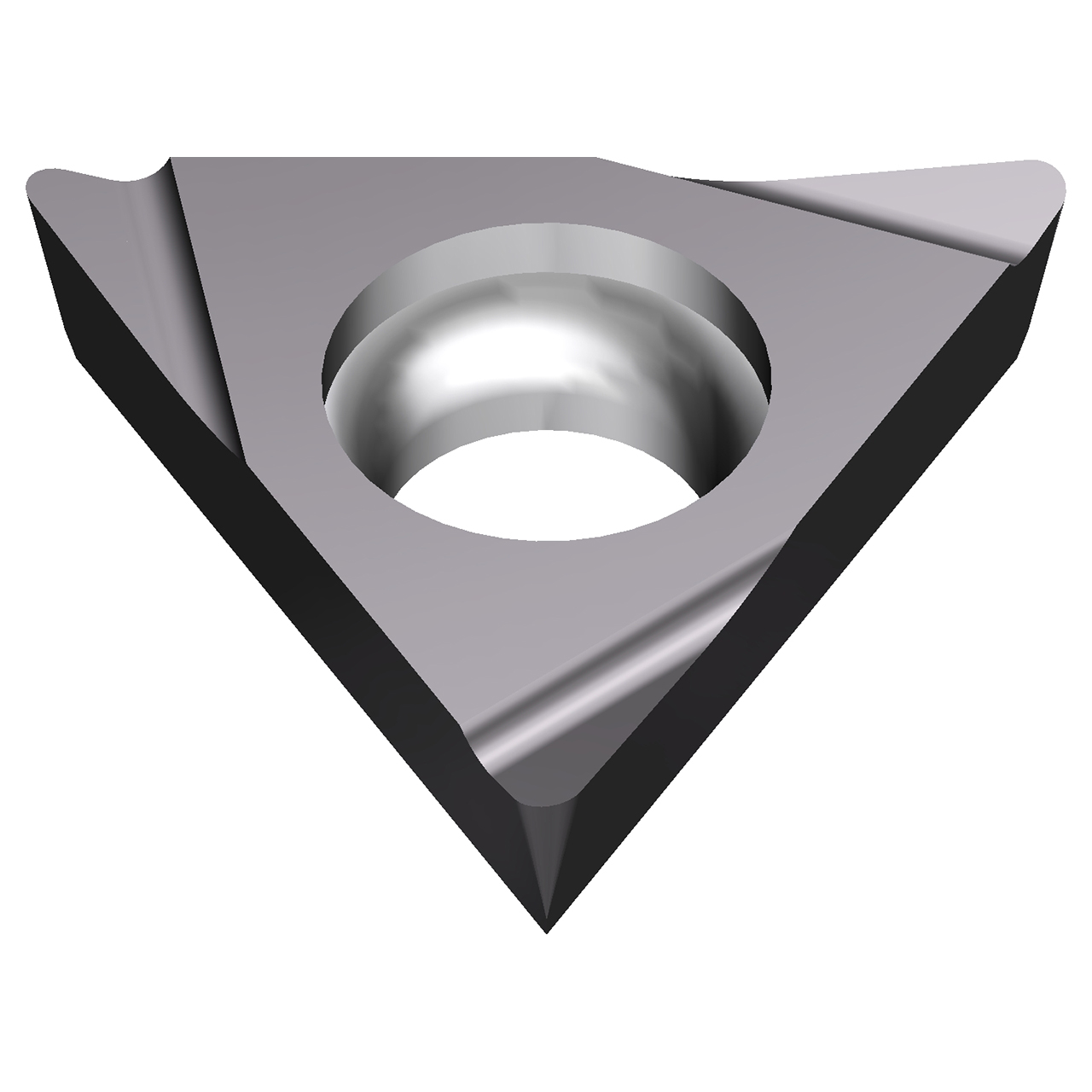

| EDP Number | 10R4502 |
| Product Code-ANSI | TPGT63.001RFY-AC1030U |
| Product Code-ISO | TPGT0802003R-FY |
| Manufacturer Grade Identification | AC1030U |
| Series | AC1030U |
| Cutting Edge Length (Decimal Inch) | 0.3228" |
| Cutting Edge Length (mm) | 8.20mm |
| Nose Radius (Decimal Inch) | 0.0012" |
| Nose Radius (mm) | 0.03mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.1874" |
| Inscribed Circle Diameter (mm) | 4.76mm |
| Hole Diameter (mm) | 2.40mm |
| Insert Thickness (Decimal Inch) | 0.0937" |
| Insert Thickness (mm) | 2.38mm |
| Relief Angle | 11 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | G |
| Chip Breaker | RFY |
| Corner Angle | 60 |
| Insert Style | TPGT |
| Secondary Workpiece Material | Steel, Stainless Steel, Small Machining |
| Primary Workpiece Material | Steel, Stainless Steel, Small Machining |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | P10, M10 |
| Insert Holding Method | Screw-On |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Insert Style:
TPGT
Insert Size:
63.001
Material:
Carbide
Length (Inch):
5/16"
Length (Decimal Inch):
0.3228"
Length (mm):
8.20mm
Inscribed Circle (Inch):
3/16"
Inscribed Circle (Decimal Inch):
0.1874"
Inscribed Circle (mm):
4.76mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Decimal Inch):
0.0012"
Corner Radius (mm):
0.03mm
Manufacturer's Grade:
AC1030U
interval quantity:
10
Ships:
From California in 1-2 Days
